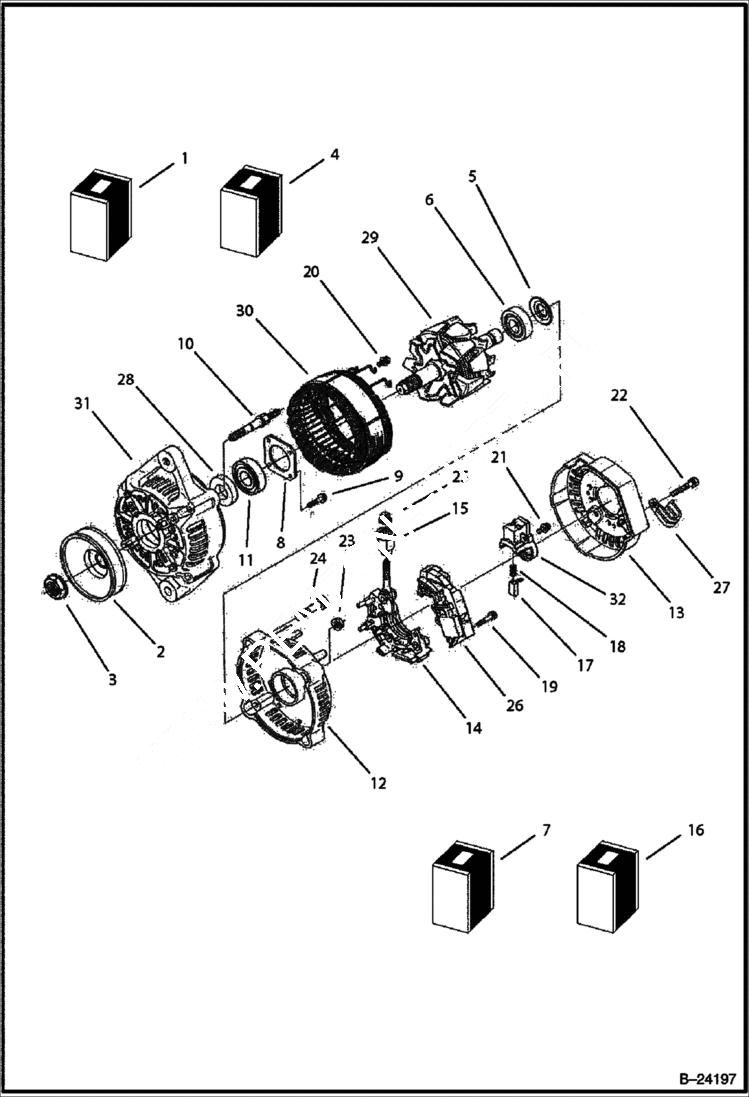

Запчасти Bobcat B300 ALTERNATOR ELECTRICAL SYSTEM

1

6988708

ALTERNATOR assy - Was 6683304 - A

2

PULLEY

3

6681709

NUT

4

6683197

ROTOR ASSY W/Refs. 5, 6 & 29

5

6681712

COVER, BEARING

6

6683198

BEARING, BALL

7

6683192

FRAME ASSY

8

6681724

PLATE, RETAINER

9

6681725

SCREW

10

6681726

BOLT, THROUGH

11

6681727

BEARING, BALL

12

6683193

FRAME, END

13

6969840

COVER, END

14

6683194

ASSY, RECTIFIER

15

6683196

BRUSH

16

6969841

HOLDER, BRUSH brush

17

6681733

BRUSH

18

6681734

SCREW

19

6681735

SCREW

20

6681736

SCREW

21

6681737

SCREW

22

6681738

BOLT

23

6681739

NUT

24

6681740

BOLT

25

6653933

NUT

26

6969842

ASSY REGULATOR

27

6683200

CLAMP, CORD

28

6681710

COLLAR

29

ROTER NLA

30

STATOR NLA

31

FRAME NLA - drive end separately

32

HOLDER NLA
