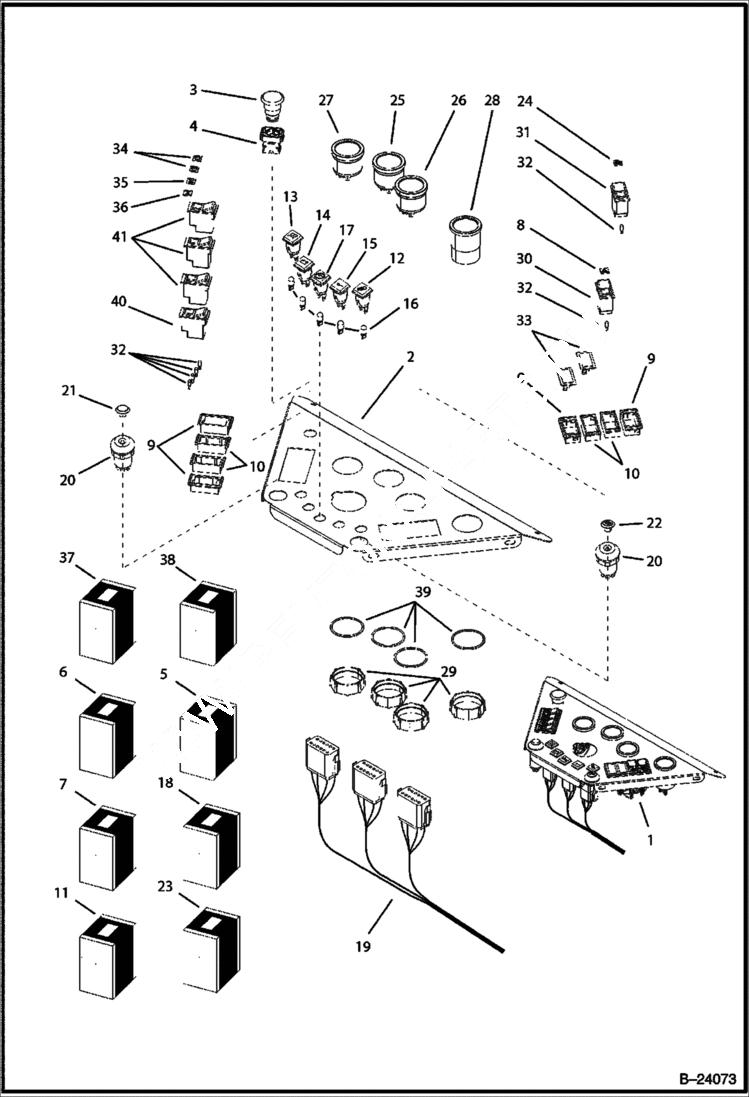

Запчасти Bobcat B300 ELECTRICAL CIRCUITRY Dashboard ELECTRICAL SYSTEM

1

6968893

DASHBOARD Ref. 2-24 & 33

2

6968892

PLATE

3

6961354

SWITCH

4

6961355

SWITCH

5

6973757

THERMOMETER Ref. 25, 29 & 44

6

6966725

GAUGE Fuel - W/Ref. 26, 29 & 44 - Face OD 2.23'' W/5 Terminals

7

6974983

SWITCH Ref. 30 & 32

8

6974988

SYMBOL

9

6974979

COVER

10

6974978

FRAME

11

6966727

TEMPERATURE GAUGE Ref. 27, 29 & 44

12

6961374

LIGHT

13

6961371

LIGHT Ref. 35 & 39-41

14

6961372

LIGHT Ref. 36 & 39-41

15

6961373

LIGHT Ref. 37 & 39-41

16

6961370

BULB

17

6968863

LIGHT Ref. 38 & 39-41

18

6966726

HOURCOUNTER Ref. 28, 29 & 44

19

6962114

HARNESS

20

6961369

SWITCH Ref. 42 & 43 - Park brake

21

6961382

COVER green

22

6966676

COVER red

23

SWITCH NLA - Ref. 31-33 - Was 6974989 - A

24

6974518

SYMBOL

25

THERMOMETER NLA - Order Ref. 5

26

METER NLA

27

THERMOMETER NLA - Order Ref. 11

28

HOURCOUNTER NLA - Order Ref. 18

29

6969417

NUT

30

SWITCH NLA - Order Ref. 7

31

SWITCH NLA - Order Ref. 23

32

6960577

SWITCH

33

6974976

COVER

34

6974985

SYMBOL Order Ref. 12

35

6974986

SYMBOL

36

6974987

SYMBOL

37

6974981

SWITCH Ref. 32 & 41

38

6974982

SWITCH Ref. 32 & 40

39

6969418

WASHER

40

SWITCH NLA

41

SWITCH NLA
