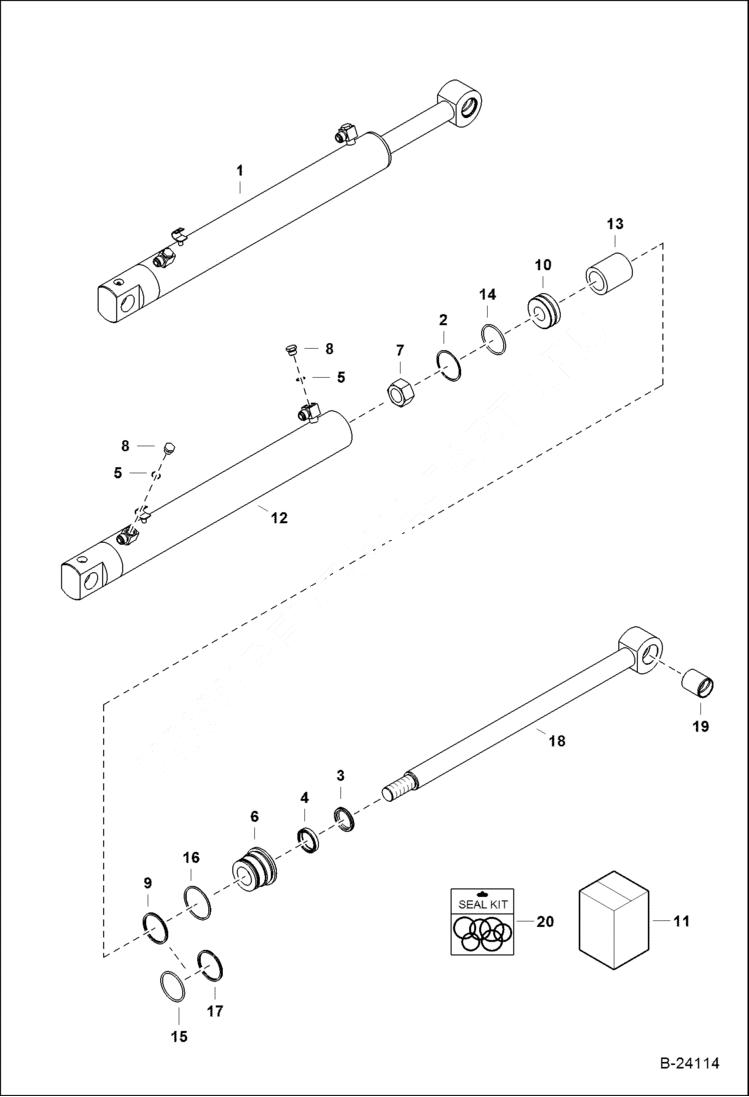

Запчасти Bobcat B300 TILT CYLINDER Loading Arms HYDRAULIC SYSTEM

1

6815132

CYLINDER Ref. 2-8 & 10-17 - base end hole diameter is 1.38''

2

1522534

SEAL

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL rod

5

75K3

O-RING

6

6806124

HEAD

7

6810539

NUT

8

6812171

PLUG hyd tube

9

7008778

SEAL, QUAD

10

6815011

PISTON

11

6815133

SHAFT Ref. 18 & 19

12

6815138

TUBE

13

6815137

SPACER

14

25K30202

O RING 10 Was 54K30202 - B

15

25K40208

O RING 10 Was 54K40208 - B

16

82K230

O-RING Was 58K-230 - A

17

73K228

BACK-UP RING

18

SHAFT NLA

19

6804139

BUSHING

20

7135559

SEAL KIT Ref. 2-4, 7, 9, 14, & 16 - Was 6816537 - A
