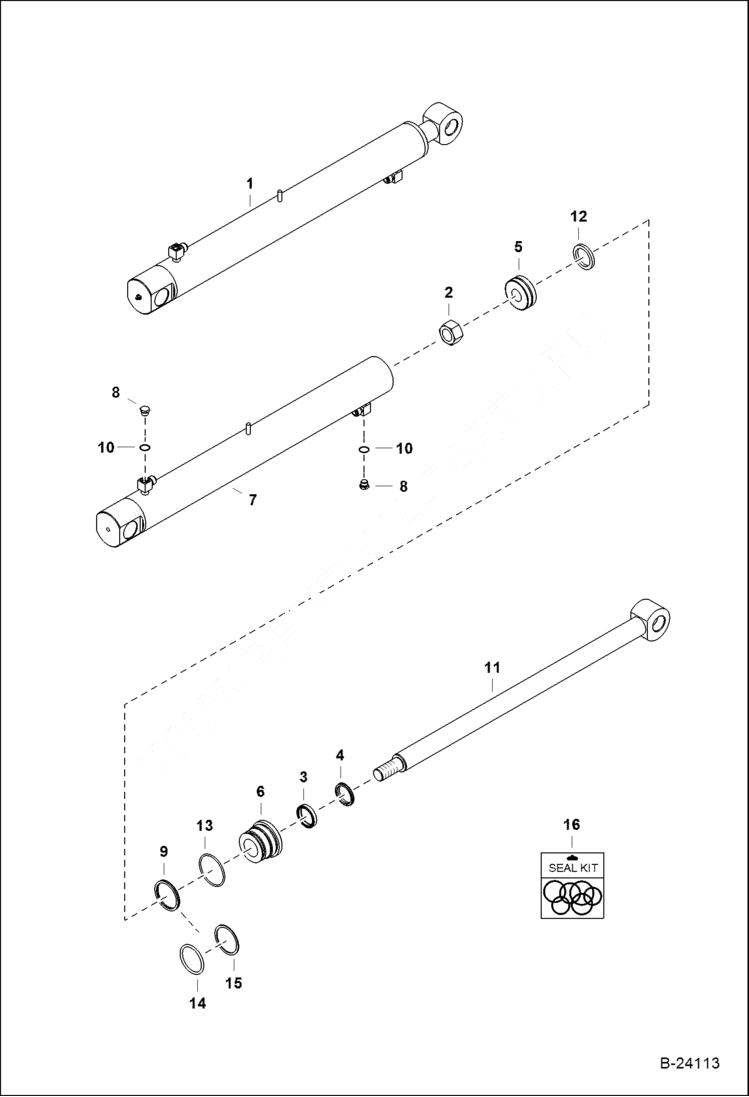

Запчасти Bobcat B300 LIFT CYLINDER Loading Arms HYDRAULIC SYSTEM

1

6815068

CYLINDER Ref. 2-8 & 10-15

2

6810539

NUT Was 6804592 - A

3

6669267

SEAL

4

6687000

WIPER ROD wiper - Was 6669268 - A

5

6678932

PISTON

6

6800686

HEAD, CYL TILT

7

6815073

TUBE

8

6812171

PLUG hyd tube

9

7008356

SEAL, QUAD

10

75K3

O-RING

11

6815070

SHAFT

12

6815294

SPACER

13

25K40224

O RING 10 Was 54K40224 - B

14

25K60212

O RING 10 Was 54K60212 - B

15

73K332

RING

16

6817516

SEAL KIT Ref. 2-4, 9, 12, & 13 - Was 6800701 - A
