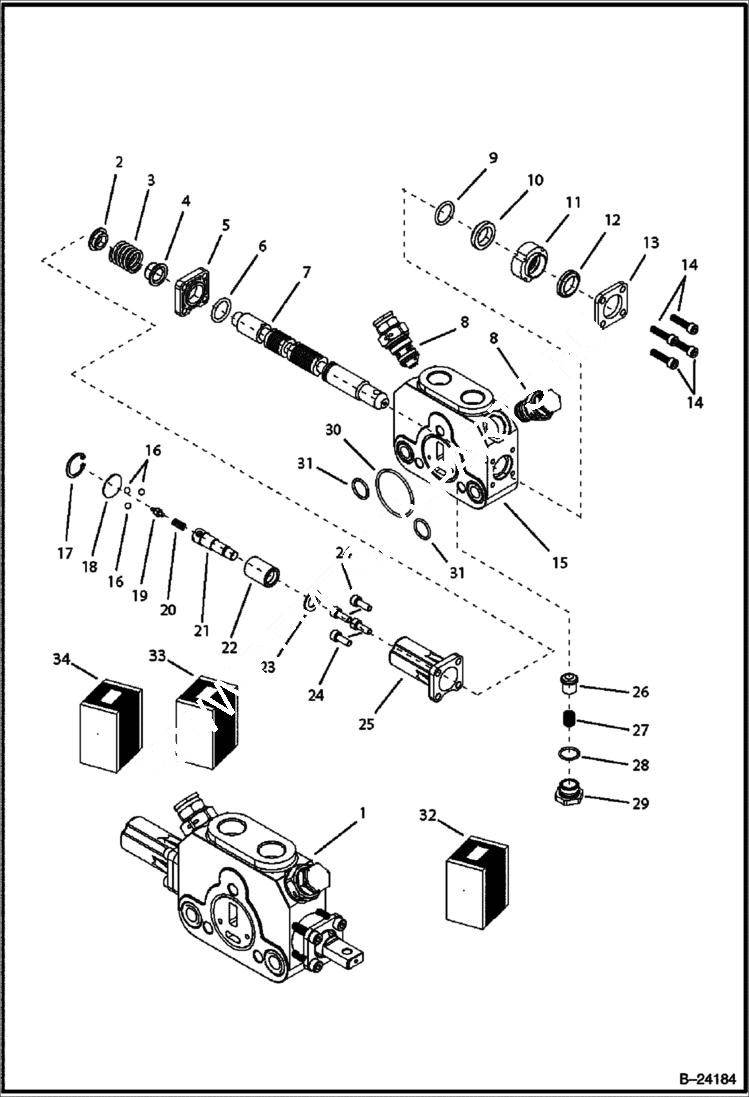

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Front Distributor HYDRAULIC SYSTEM

1

6683280

SECTION Ref. 8, 15, 25 & 30-34

2

SPRING BLOCK NSS

3

SPRING NSS

4

SPRING BLOCK NSS

5

COVER NSS

6

O-RING NSS

7

SHAFT NSS

8

6684370

VALVE

9

O-RING NSS

10

RING NSS

11

RING NSS

12

RING NSS

13

COVER NSS

14

BOLT NSS

15

BODY NSS

16

BALL NSS

17

RING NSS

18

WASHER NSS

19

NEEDLE NSS

20

SPRING NSS

21

PIN NSS

22

CYLINDER NSS

23

WASHER NSS

24

BOLT NSS

25

COVER NSS

26

CYLINDER NSS

27

SPRING NSS

28

O-RING NSS

29

PLUG NSS

30

O-RING NSS

31

O-RING NSS

32

6682357

VALVE KIT Ref. 26-29

33

6682384

END Ref. 9-14

34

6684041

FLOAT Ref. 2-7, 16-24
