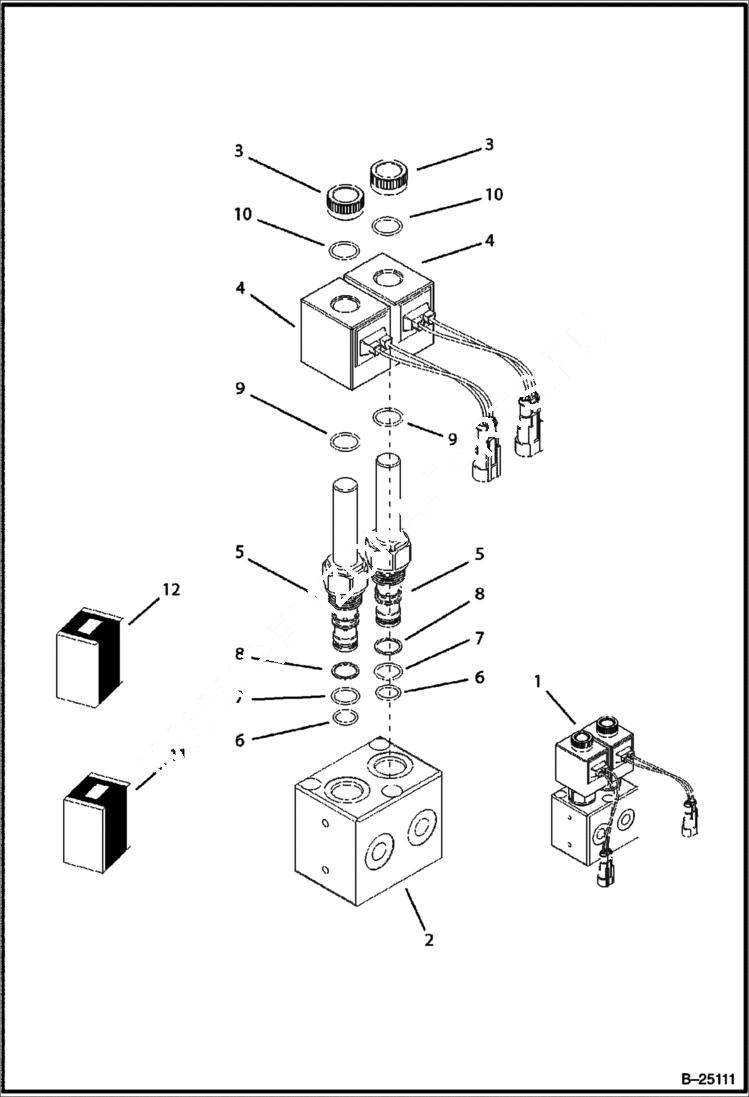

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Valve HYDRAULIC SYSTEM

1

6966820

VALVE Ref. 2-10

2

6969535

HOUSING

3

NUT NLA

4

6969536

SOLENOID

5

VALVE NLA

6

O-RING NLA

7

O-RING NLA

8

SEAL NLA

9

O-RING NLA

10

O-RING NLA

11

6969544

KIT Ref. 3, 5 & 12

12

6969546

SEAL KIT Ref. 6-10
