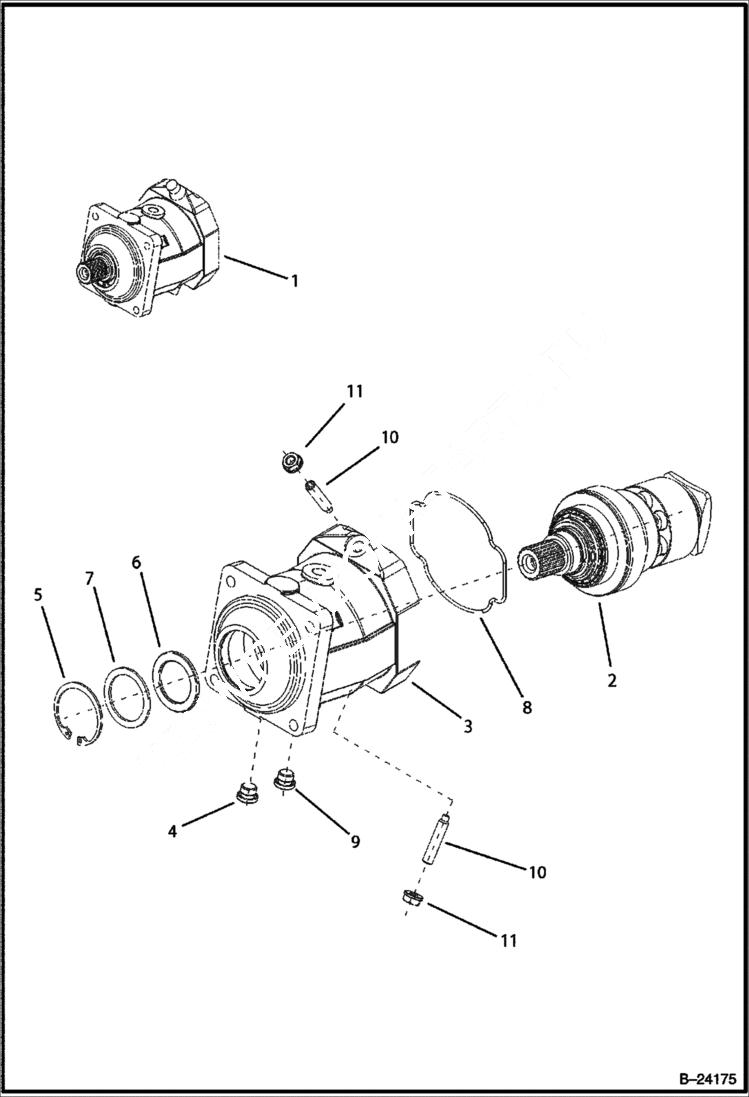

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Hydraulic Motor HYDRAULIC SYSTEM

1

PART NLA - Ref. 2-11

2

6682279

ROTARY GROUP

3

6682280

HOUSING

4

6682281

SCREW Ref. 12 - 13

5

6682282

RING

6

6682283

RING

7

6682284

PLATE

8

6682285

O-RING

9

6682286

SCREW Ref. 14 - 15

10

6682287

SCREW

11

6682288

NUT
