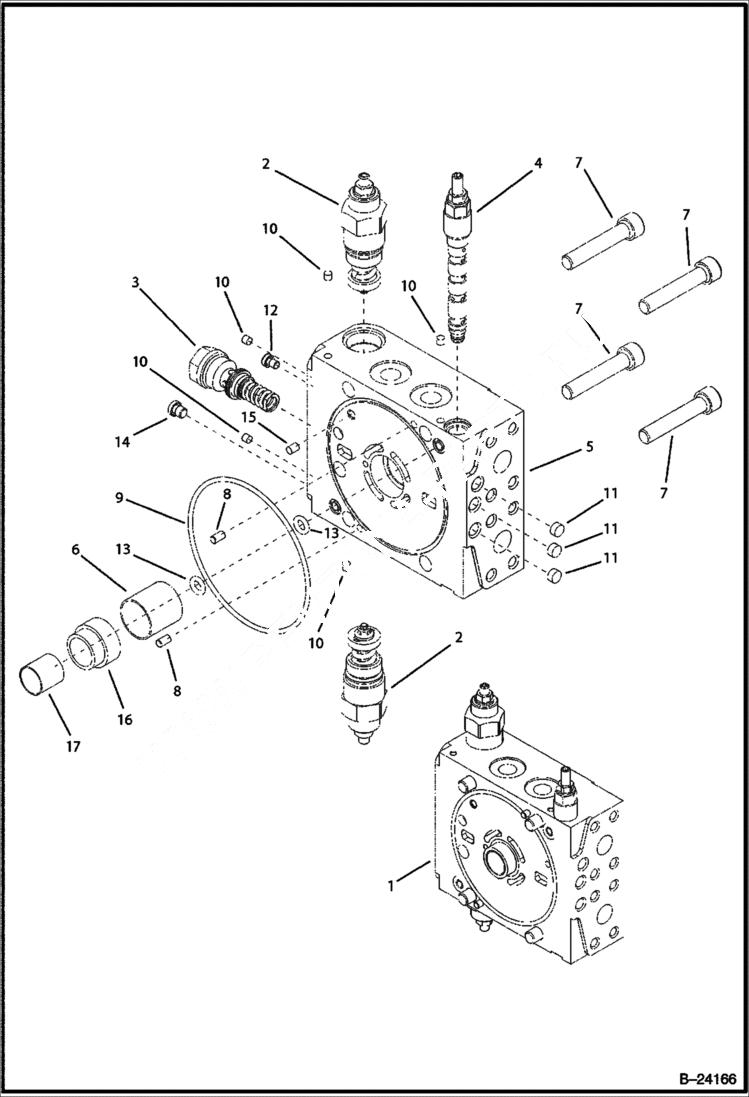

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Axial Pump HYDRAULIC SYSTEM

1

6967410

KIT Ref. 2-17

2

6967509

VALVE

3

6682915

VALVE Was 6967510 - A

4

6967511

VALVE

5

6967512

HOUSING

6

6682917

BUSHING Was 6967513 - A

7

6967514

SCREW

8

6682919

PIN Was 6967515 - A

9

6967516

O-RING

10

6682879

PIN Was 6967608 - A

11

6967609

PIN

12

6682960

SCREW Was 6967517 - A

13

6682920

O-RING Was 6967518 - A

14

6967417

SCREW

15

6967610

PIN

16

6967519

BUSH

17

6967520

BEARING
