Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

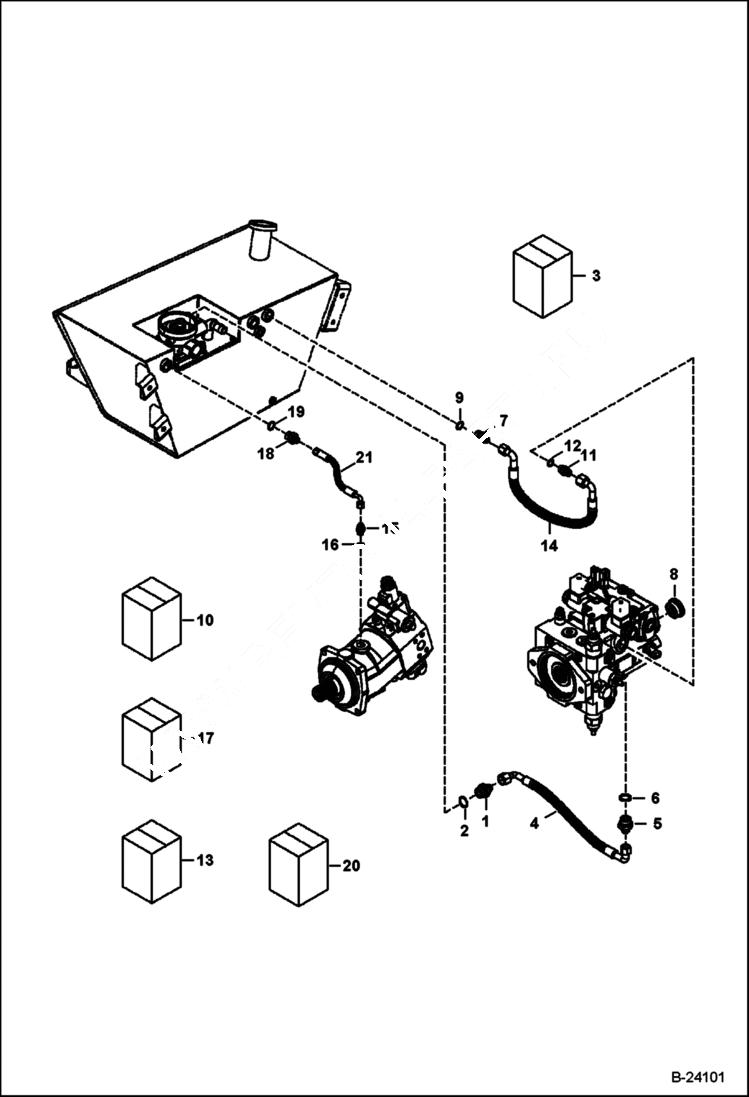

Схема запчастей Bobcat B300 - HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

FITTING NLA

2

6969374

SEAL

3

6966065

FITTING Ref. 1 & 2

4

6966741

HOSE

5

6966815

FITTING

6

6966040

SEAL

7

FITTING NLA

8

6976973

CLUTCH between engine and pump

9

6969375

SEAL

10

6966081

FITTING Ref. 7 & 9

11

FITTING NLA

12

6969382

SEAL

13

6966816

FITTING Ref. 11 & 12

14

6966133

HOSE

15

FITTING NLA

16

6969384

SEAL

17

6966821

FITTING Ref. 15 & 16

18

FITTING NLA

19

6969375

SEAL

20

6966823

FITTING Ref. 18 & 19

21

6966735

HOSE

Выбрано товаров: 21
