Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Center Backhoe HYDRAULIC SYSTEM

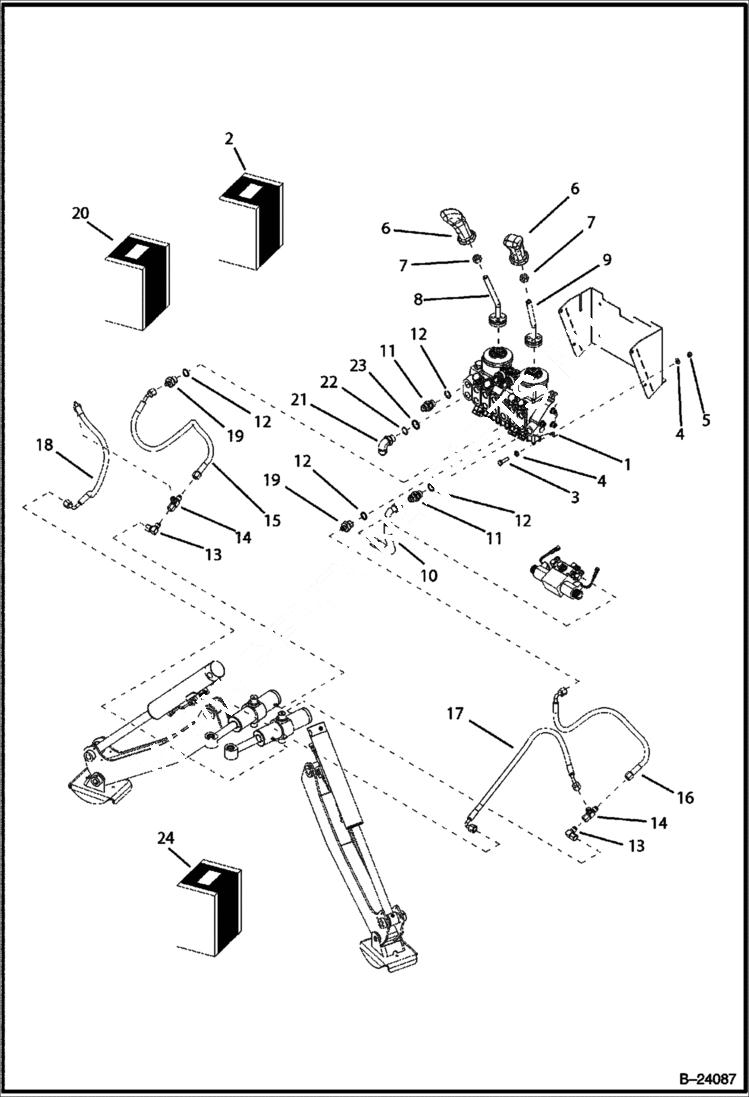

Схема запчастей Bobcat B300 - HYDRAULIC CIRCUITRY Center Backhoe HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6973810

DISTRIBUTOR REAR Rear

2

6966088

FITTING Ref. 21-23

3

1CM830

BOLT

4

6964587

WASHER

5

16DM8

NUT

6

6675364

HANDLE

7

5DM14

LOCK NUT

8

6964785

LEVER

9

6964782

LEVER

10

6966689

HOSE

11

FITTING NLA

12

SEAL NLA

13

11K5

FITTING

14

13K05

FITTING

15

6966678

HOSE

16

6966679

HOSE

17

6966897

HOSE

18

6966898

HOSE

19

FITTING NLA

20

6966079

FITTING Ref. 19-20

21

FITTING NLA

22

6969373

O RING

23

6969385

RING

24

6966073

FITTING Ref. 11-12

Выбрано товаров: 24
