Запчасти Bobcat B300 BUCKET CYLINDER 5717 11031 & Below HYDRAULIC SYSTEM

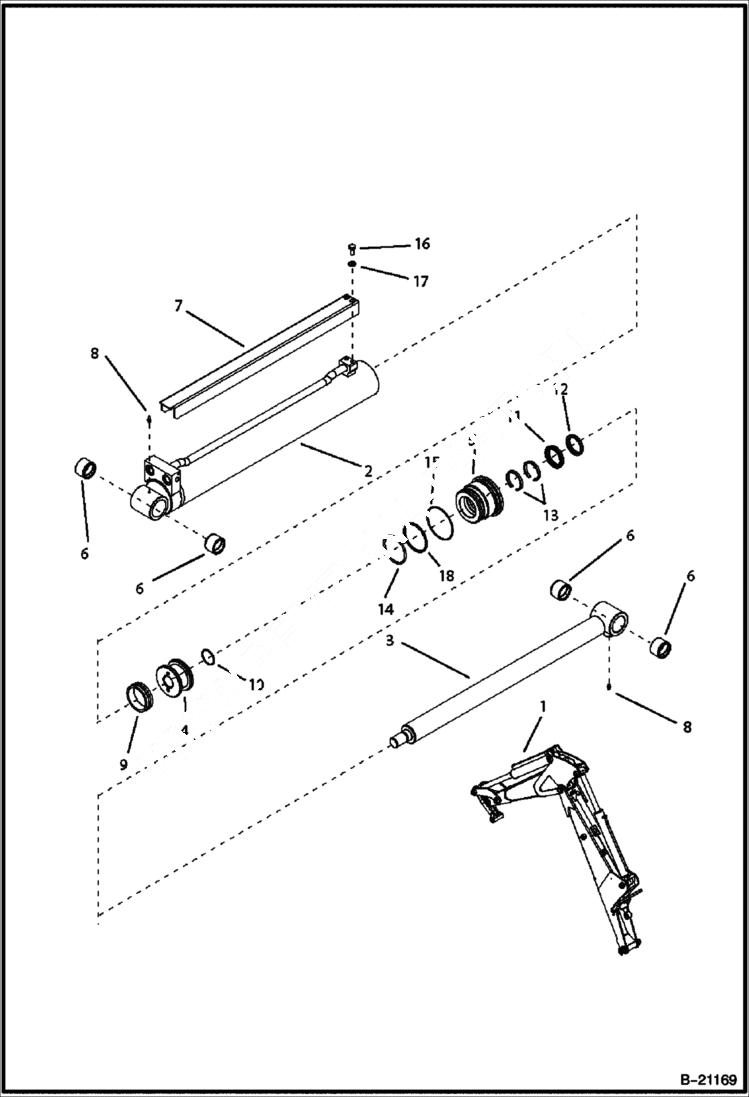

Схема запчастей Bobcat B300 - BUCKET CYLINDER 5717 11031 & Below HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6960612

CYLINDER w/Ref 2-18

2

6960601

HOUSING

3

6960602

ROD

4

6814838

PISTON Was 6960578 - A

5

6814841

HEAD CYLINDER Was 6960580 - A

6

6960579

BUSHING

7

6960600

COVER

8

6962268

GREASE FITTING

9

6960583

SEAL

10

6960584

O-RING

11

6960589

SEAL

12

6960590

WIPER

13

6960588

SEAL

14

6960585

O-RING

15

6960587

O-RING

16

1CM816

BOLT

17

6964587

WASHER

18

6960586

BACK-UP RING

Выбрано товаров: 18
