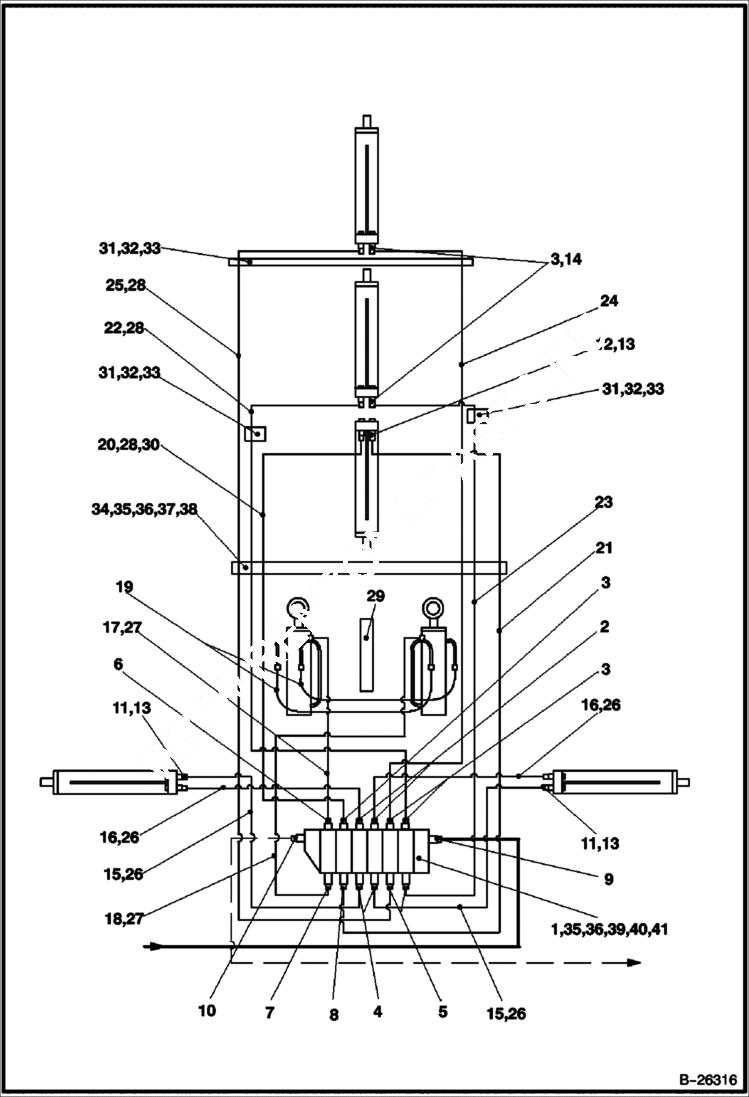

Запчасти Bobcat B300 HYDRAULIC CIRCUITRY Backhoe HYDRAULIC SYSTEM

1

6962694

VALVE

2

6960720

FITTING

3

6960733

FITTING

4

6960735

FITTING

5

6960732

FITTING

6

6960737

FITTING

7

6960736

FITTING

8

6961013

FITTING

9

6961745

FITTING

10

6960654

FITTING

11

6960704

FITTING

12

6960703

FITTING

13

6962101

SEAL

14

6962096

RING

15

6962140

HOSE

16

6962141

HOSE

17

6962142

HOSE

18

6962143

HOSE

19

6962144

HOSE

20

6962145

HOSE

21

6962146

HOSE

22

6962147

HOSE

23

6962148

HOSE

24

6962148

HOSE

25

6962150

HOSE

26

6975282

PROTECTIVE HOSE L 810MM

27

6961028

COVER

28

6961029

COVER

29

6961186

COVER

30

6960957

CLIP

31

6960756

HOLDER

32

6960755

PLATE

33

1GM835

BOLT M8X35

34

1CM880

BOLT

35

6962819

WASHER

36

16DM8

NUT

37

6961015

HOLDER

38

6961014

COVER

39

6960754

KNOB

40

6960738

CONTROL VALVE

41

1CM830

BOLT
