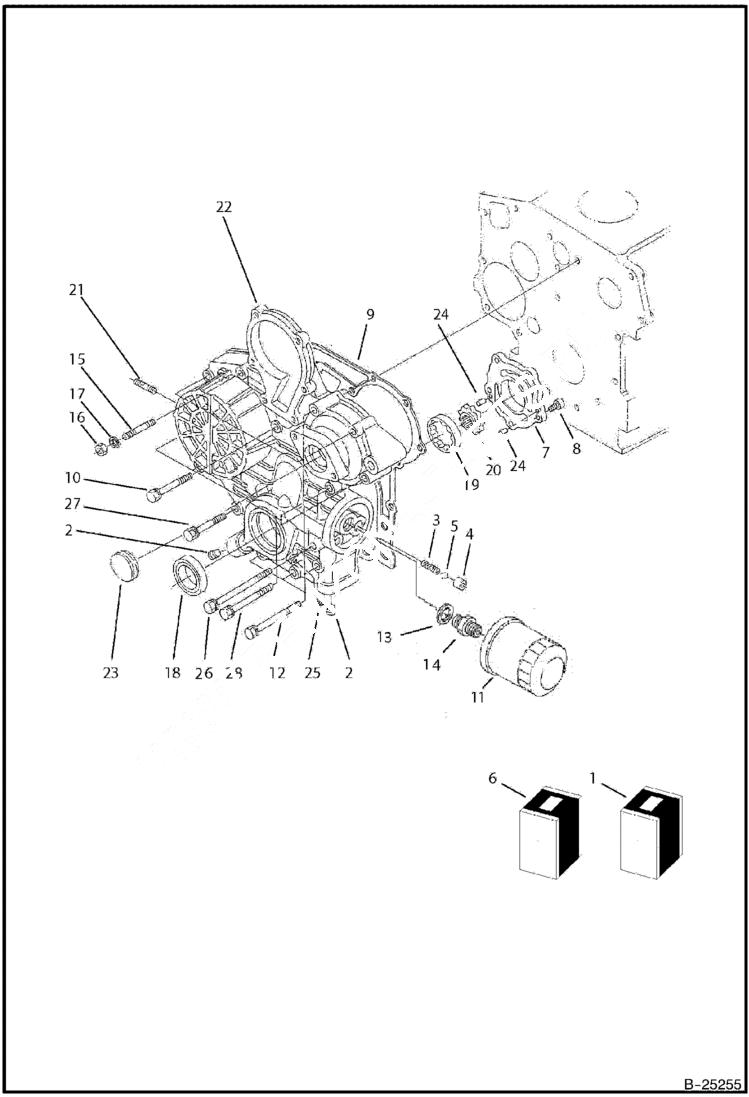

Запчасти Bobcat B250 GEAR CASE Tier II 5729 11001 & Abv POWER UNIT

1

6975165

COMP. CASE, GEAR W/Ref. 2-8, 22

2

6672360

PLUG

3

6657554

SPRING

4

6657553

SEAT

5

6657426

BALL

6

6657549

ROTOR ASSY W/Ref. 19, 20

7

6686173

COVER

8

6680262

BOLT

9

6657479

GASKET

10

6969886

BOLT

11

6680527

COLLAR

12

6657413

BOLT

13

6975218

CONNECTOR

14

6657635

FILTER, OIL ENG

15

6680263

STUD

16

10M6

NUT

17

6667419

WASHER

18

6680616

SEAL

19

ROTOR NLA

20

ROTOR NLA - oil pump

21

6680264

STUD

22

GEARCASE NLA

23

6672363

COVER

24

6686174

PIN

25

6652574

PLUG

26

6657589

BOLT

27

6652594

BOLT

28

6670770

BOLT
