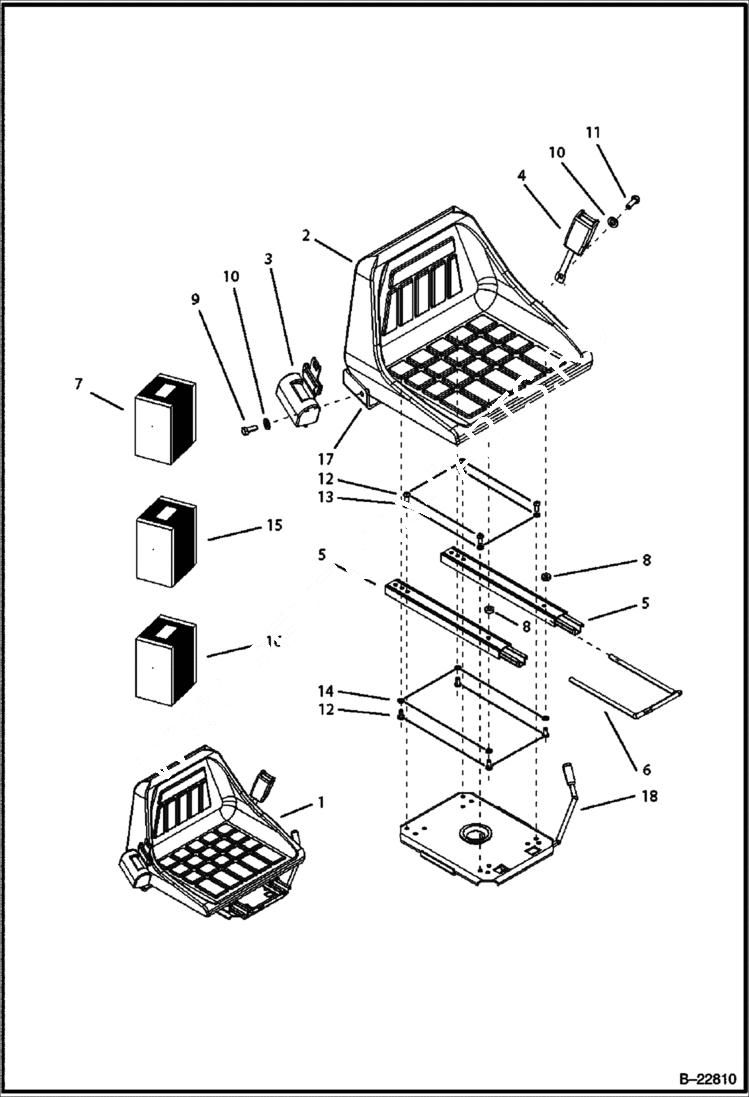

Запчасти Bobcat B250 SEAT CAB

1

6961384

SEAT assy. Ref. 2-6, 6-14, 17, 18

2

6969870

SEAT

3

BELT NLA

4

LOCK NLA

5

ADJUSTER NLA

6

HOLDER NLA

7

6967223

TURNTABLE KIT W/Ref. 8,12,14,18

8

WASHER NLA

9

BOLT NLA

10

WASHER NLA

11

BOLT NLA

12

BOLT NLA

13

WASHER NLA

14

WASHER NLA

15

6967224

SEAT BELT KIT Ref. 3, 4, 9-11

16

6964225

ADJUSTER KIT

17

6969873

BRACKET

18

TURNTABLE NLA
