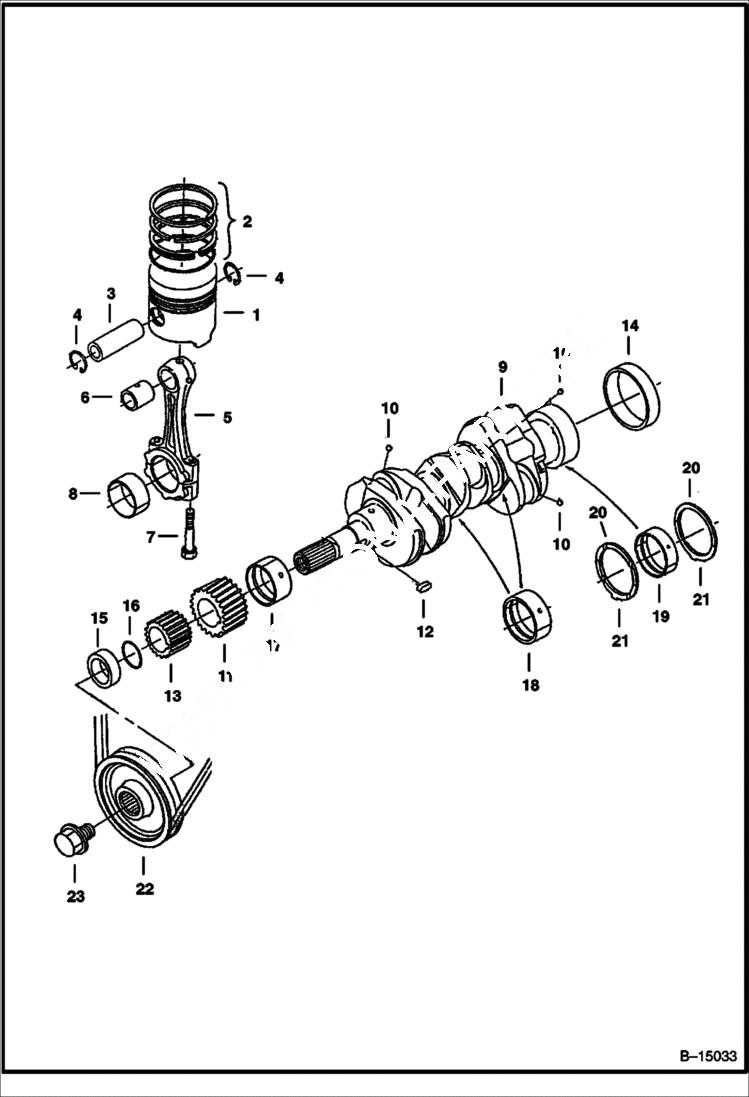

Запчасти Bobcat B200 PISTON & CRANKSHAFT POWER UNIT

1

6680619

PISTON std (16292-2111)

1

7022775

PISTON, ENG OS +0,50 mm (16292-2112 OS50) - Was 6680620 - A

2

6680494

RING ASSY standard

2

6657619

RING ASSY +0.5mm

3

6657521

PIN

4

6657522

SNAP RING

5

6680495

ROD ASSY W/Ref 6 W/Ref 7 W/Ref 8

6

6698624

BUSHING, PIN PISTON Was 6657524 - A

7

6657526

BOLT

8

6680496

ROD BEARING standard

8

6657528

BEARING, ENG ROD CONNECTING -0.2mm

8

6657529

ROD BEARING -0.4mm

9

6680267

CRANKSHAFT W/Ref 10 W/Ref 11 W/Ref 12 W/Ref 13 W/Ref 14

10

6652633

BALL 1/4''

11

6657541

GEAR

12

6657661

KEY

13

6657552

GEAR

14

6657531

SLEEVE

15

6657530

COLLAR

16

6680268

O-RING

17

6680497

BEARING, ENG CRANKSHAFT standard

17

6657537

BEARING -0.2mm

17

6657538

BEARING -0.4mm

18

6680498

BEARING, ENG MAIN standard

18

6657539

BEARING -0.2mm

18

7023136

BEARING, ENG CRANKSHAFT -0,40 mm - Was 6657540 - A

19

6680269

BEARING standard

19

6680270

BEARING -0,20 mm

19

6680271

BEARING -0,40 mm

20

3974945

WASHER, THRUST standard

20

6654715

WASHER, THRUST +0.2mm

20

3975022

WASHER, THRUST +0.4mm

21

6653865

WASHER, THRUST standard

21

6654002

WASHER, THRUST +0,20 mm

21

6654003

WASHER, THRUST +0,40 mm

22

6672428

PULLEY

23

6657588

BOLT
