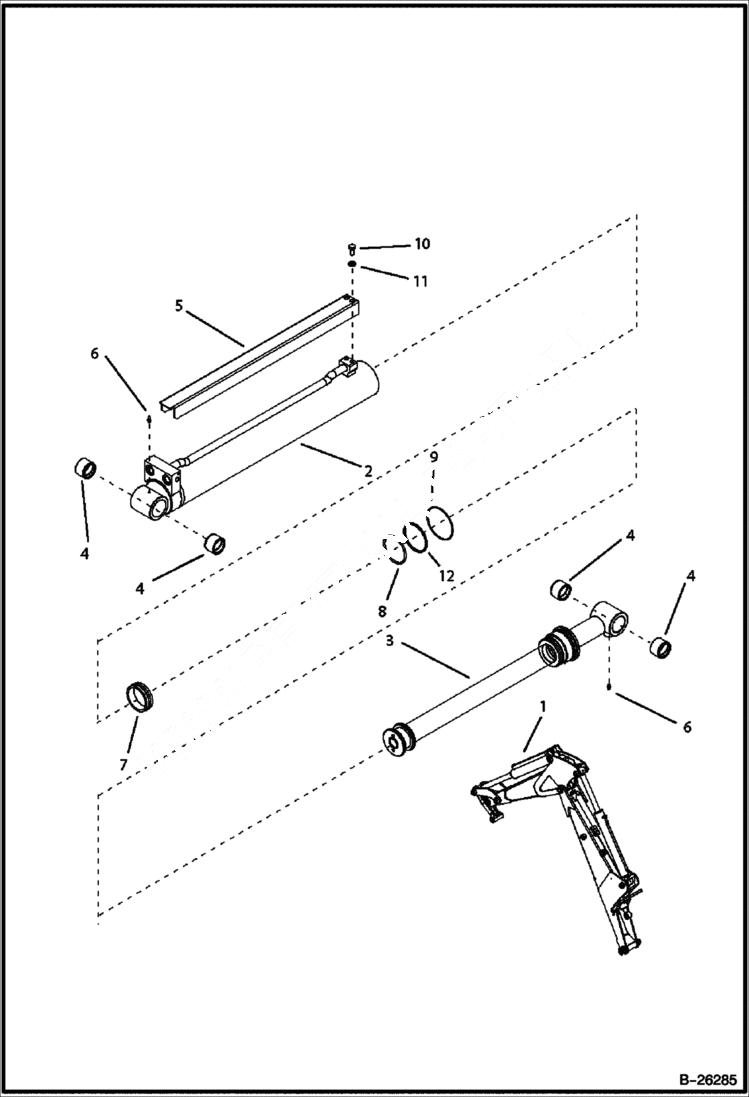

Запчасти Bobcat B200 BUCKET CYLINDER (B200) 5702 11089 & Above (B250) 5703 11055 & Above HYDRAULIC SYSTEM

1

6962686

HYDRAULIC CYLINDER W/Ref. 2-12

2

6966847

BUCKET CYLINDER

3

6966848

ROD, CYLINDER ASSY

4

6960579

BUSHING

5

6960600

COVER

6

6962268

GREASE FITTING

7

6960583

SEAL

8

6960585

O-RING

9

6960587

O-RING

10

1CM816

BOLT

11

6964587

WASHER

12

6960586

BACK-UP RING
