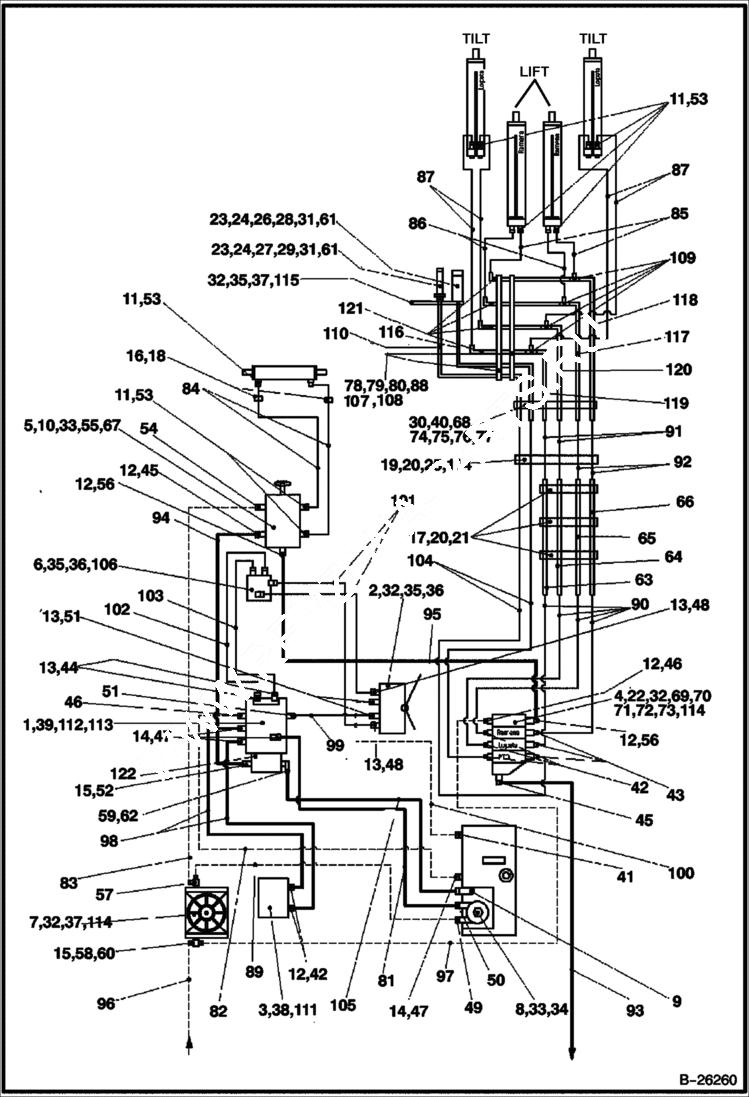

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY 5700 11056 & Below HYDRAULIC SYSTEM

1

6960215

PUMP

2

6963657

PEDAL

3

6960883

MOTOR

4

6962695

DISTRIBUTOR

5

6961784

STEERING UNIT

6

6964631

WASHER

7

6961606

OIL COOLER ASSY

8

6960724

FILTER

9

6960885

BRACE

10

6962344

STEERING

11

6962101

SEAL

12

6962813

CU RING

13

6962814

RING

14

6962815

RING

15

6960886

O-RING

16

6963520

HOLDER

17

6960888

BRACKET HOSE

18

1GM530

BOLT

19

6963527

CLIP

20

6960755

PLATE

21

1CM865

SCREW

22

1CM835

BOLT

23

6962818

NUT

24

6962099

WASHER

25

6960756

HOLDER

26

6672960

COUPLER, FF FEMALE straight

27

6674688

COUPLER, FF MALE straight

28

6960671

COVER

29

6960672

COVER

30

6963531

SQUARED WASHER

31

6960881

O-RING

32

6962819

WASHER

33

6EM10

WASHER

34

1GM1025

BOLT

35

8EM80

WASHER

36

1CM816

BOLT Was 4CM816 - A

37

1CM820

BOLT

38

1CM1235

BOLT

39

1CM1440

BOLT

40

6962803

HOLDER

41

6960720

FITTING

42

6960733

FITTING

43

6960732

FITTING

44

6960869

FITTING

45

6960702

FITTING

46

6960654

FITTING

47

6960723

FITTING

48

6960791

FITTING

49

6960721

FITTING

50

6960721

FITTING

51

6960790

FITTING

52

6960872

FITTING

53

6960704

FITTING

54

6960703

FITTING

55

VALVE NLA - Order 6961784 - Was 6961795 - A

56

6960706

FITTING

57

6960874

COUPLING

58

6960875

FITTING

59

6960876

FITTING

60

6960877

PLUG

61

6960668

FITTING

62

6962847

NUT

63

6960892

TUBE

64

6960893

TUBE

65

6960894

TUBE

66

6960895

TUBE

67

6960700

BOLT

68

6962798

HOLDER

69

6960897

LEVER auxilliary loader

70

6962775

LEVER lift and tilt loader

71

6962779

HOLDER front distributor - triangle shape w/ 3 round holes and 1 slotted hole

72

6960754

KNOB

73

1DM10

NUT

74

6962799

COVER

75

6962800

BOLT HYDAC

76

6962801

BOLT

77

6962802

PLATE

78

6963530

SQUARED WASHER

79

6962804

HOLDER

80

6962805

COVER

81

6961608

HOSE

82

6961609

HOSE

83

6961610

HOSE

84

6961611

HOSE

85

6961612

HOSE

86

6961613

HOSE

87

6961614

HOSE

88

6962806

PLATE

89

6961615

HOSE

90

6961616

HOSE

91

6961617

HOSE

92

6961618

HOSE

93

6961619

HOSE

94

6961620

HOSE

95

6961621

HOSE

96

6961622

HOSE

97

6961623

HOSE

98

6961624

HOSE

99

6961625

HOSE

100

6961626

HOSE

101

6961334

HOSE

102

6961335

HOSE

103

6961336

HOSE

104

6961627

HOSE

105

6960899

HOSE

106

6961399

ROD

107

6960807

BRACKET

108

6962808

BOLT

109

6963459

CLIP

110

6962850

TUBELINE 1

111

6EM12

WASHER

112

6962810

WASHER

113

8EM140

WASHER

114

16DM8

NUT

115

6961340

HOLDER

116

6962854

TUBELINE 2

117

6962856

TUBELINE 3

118

6962858

TUBELINE 4

119

6962860

TUBELINE 5

120

6962862

TUBELINE 6

121

6962864

TUBELINE 7

122

6962719

PUMP
