Запчасти Bobcat B100 HYDRAULIC CIRCUITRY 5700 11057 & Above HYDRAULIC SYSTEM

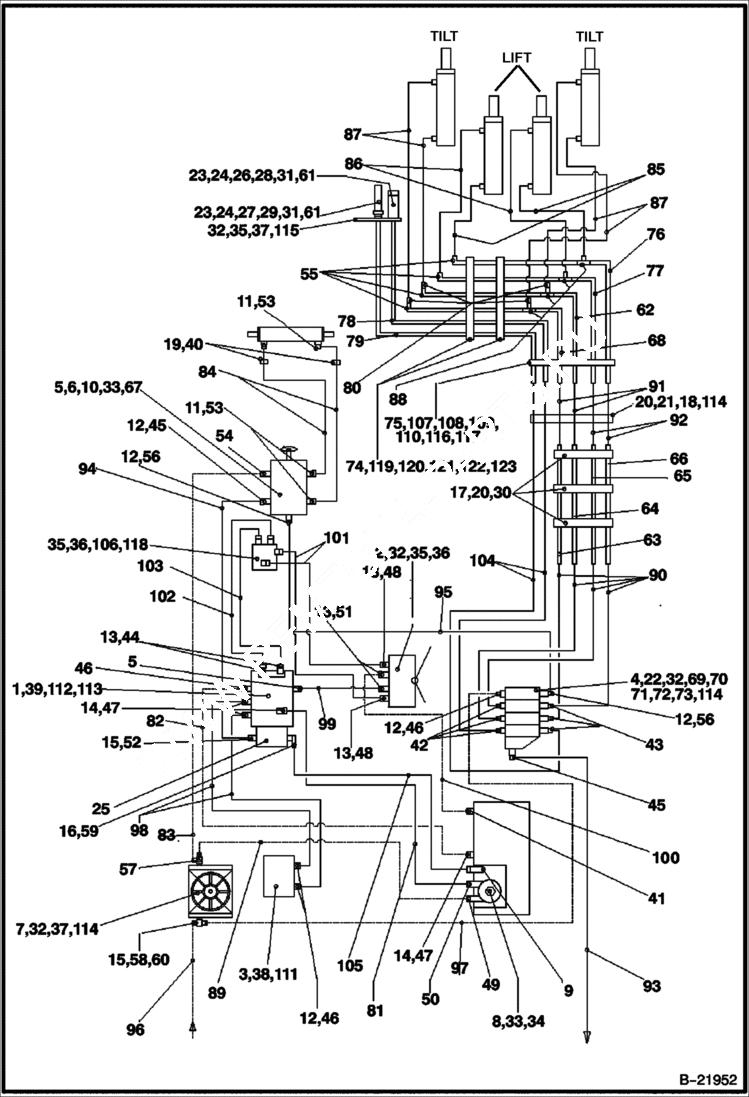

Схема запчастей Bobcat B100 - HYDRAULIC CIRCUITRY 5700 11057 & Above HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6960215

PUMP axial

2

6963657

PEDAL

3

6960883

MOTOR hydro

4

6962695

DISTRIBUTOR front

5

6961784

STEERING UNIT

6

VALVE NLA - Order 6961784 - Was 6961795 - A

7

6961606

OIL COOLER ASSY

8

6960724

FILTER

9

6960885

BRACE hose

10

6962344

STEERING steering

11

6962101

SEAL

12

6962813

CU RING

13

6962814

RING

14

6962815

RING

15

6960886

O-RING

16

6962847

NUT

17

6960888

BRACKET HOSE hose

18

6960756

HOLDER hose

19

6963520

HOLDER hose

20

6960755

PLATE

21

6963527

CLIP

22

1CM835

BOLT

23

6962818

NUT

24

6962099

WASHER

25

6962719

PUMP

26

6672960

COUPLER, FF FEMALE straight

27

6674688

COUPLER, FF MALE straight

28

6960671

COVER

29

6960672

COVER

30

1CM865

SCREW

31

6960881

O-RING

32

6962819

WASHER

33

6EM10

WASHER

34

1GM1025

BOLT

35

8EM80

WASHER

36

1CM816

BOLT Was 4CM816 - A

37

1CM820

BOLT

38

1GM1235

BOLT

39

1CM1440

BOLT

40

1GM530

BOLT

41

6960720

FITTING

42

6960733

FITTING

43

6960732

FITTING

44

6960869

FITTING

45

6960702

FITTING

46

6960654

FITTING

47

6960723

FITTING

48

6960791

FITTING

49

6960721

FITTING

50

6960722

FITTING

51

6960790

FITTING

52

6960872

FITTING

53

6960704

FITTING

54

6960703

FITTING

55

6962864

TUBELINE 7 hydraulic

56

6960706

FITTING

57

6960874

COUPLING

58

6960875

FITTING exhaust

59

6960876

FITTING

60

6960877

PLUG

61

6960668

FITTING

62

6962862

TUBELINE 6 hydraulic

63

6960892

TUBE

64

6960893

TUBE

65

6960894

TUBE

66

6960895

TUBE

67

6960700

BOLT

68

6962860

TUBELINE 5 hydraulic

69

6960897

LEVER front valve - auxilliary loader

70

6962775

LEVER front valve distributor - lift and tilt loader

71

6962779

HOLDER front distributor - triangle shape w/ 3 round holes and 1 slotted hole

72

6960754

KNOB

73

1DM10

NUT

74

6963530

SQUARED WASHER squared

75

6963531

SQUARED WASHER squared

76

6962858

TUBELINE 4

77

6962856

TUBELINE 3 hydraulic

78

6962854

TUBELINE 2 hydraulic

79

6962850

TUBELINE 1 hydraulic

80

6964495

REDUCTION

81

6961608

HOSE

82

6961609

HOSE

83

6961610

HOSE

84

6961611

HOSE

85

6963577

HOSE

86

6963576

HOSE

87

6963575

HOSE

88

6963459

CLIP

89

6961615

HOSE

90

6961616

HOSE

91

6961617

HOSE

92

6961618

HOSE

93

6961619

HOSE

94

6961620

HOSE

95

6961621

HOSE

96

6961622

HOSE

97

6961623

HOSE

98

6961624

HOSE

99

6961625

HOSE

100

6961626

HOSE

101

6961334

HOSE

102

6961335

HOSE

103

6961336

HOSE

104

6961627

HOSE

105

6960899

HOSE

106

6961339

DRIVING BLOCK ASSY

107

6962802

PLATE

108

6962801

BOLT

109

6962800

BOLT HYDAC

110

6962799

COVER

111

6EM12

WASHER

112

6962810

WASHER

113

8EM140

WASHER

114

16DM8

NUT

115

6961340

HOLDER

116

6962798

HOLDER

117

6962803

HOLDER

118

6964631

WASHER

119

6962808

BOLT

120

6962804

HOLDER

121

6962805

COVER

122

6962806

PLATE

123

6962807

BOLT

Выбрано товаров: 123
