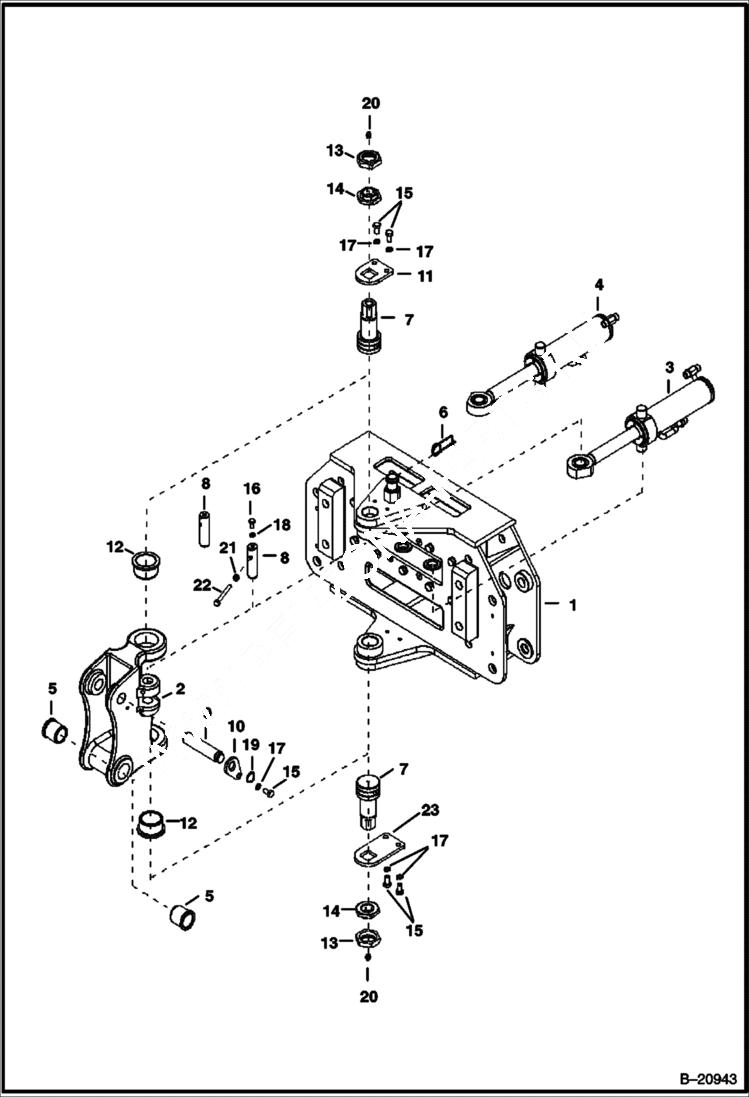

Запчасти Bobcat B100 TRUNNION With Swing WORK EQUIPMENT

1

6960218

TRUNNION assy

2

6960219

SWING FRAME

3

6960221

CYLINDER left

4

6960224

CYLINDER right

5

6960225

BUSHING

6

6960226

PIN LOCK

7

6960232

PIN

8

6960233

PIN

9

6960234

PIN

10

6960235

PLATE locking

11

6960236

PLATE locking

12

6960237

BUSHING

13

6960238

NUT

14

6960239

NUT

15

1CM1020

BOLT

16

1CM816

BOLT

17

8EM100

WASHER

18

8EM80

WASHER

19

6JM25

RING

20

1HM10

STRAIGHT FITTING OILER Was 6962809 - A

21

16DM8

NUT

22

1CM875

BOLT

23

6960240

PLATE locking
