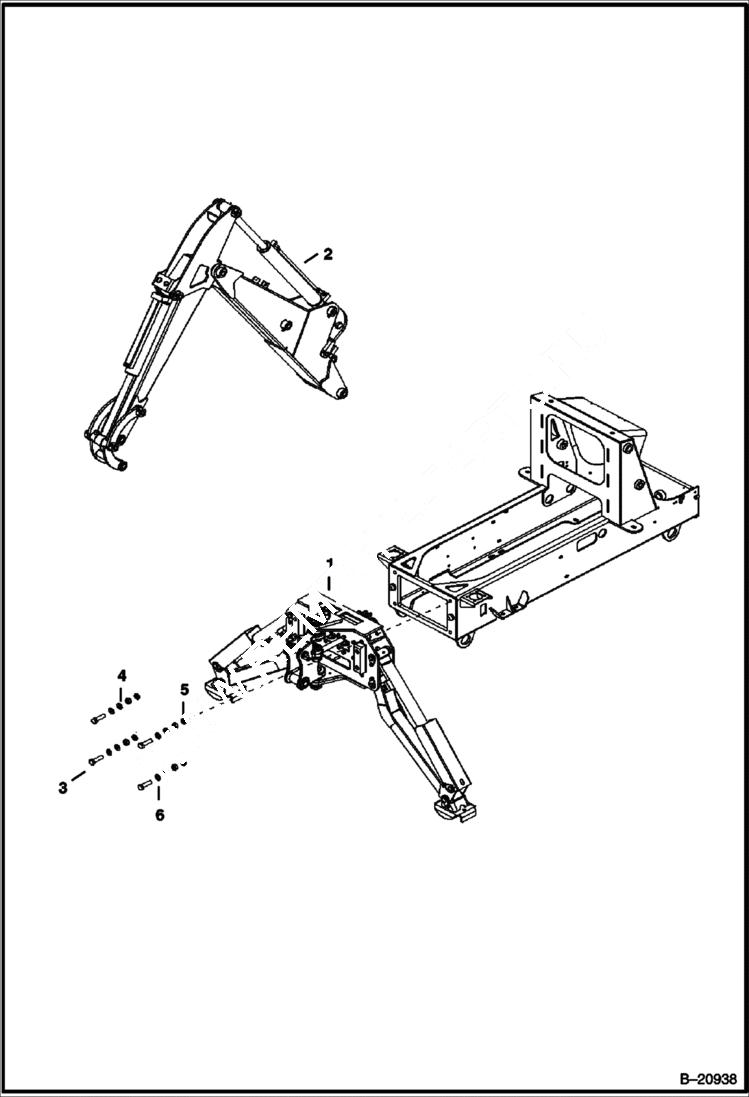

Запчасти Bobcat B100 WORK GROUP WORK EQUIPMENT

1

TRUNNION See Illustration TRUNNION/ B20942 NLA - Assy

2

WORK GROUP See Illustration ARM/LINK ASSY./ B20939 NLA - Assy

3

5CM2070

SCREW

4

2DM20

NUT

5

6964563

NUT

6

6964575

WASHER
