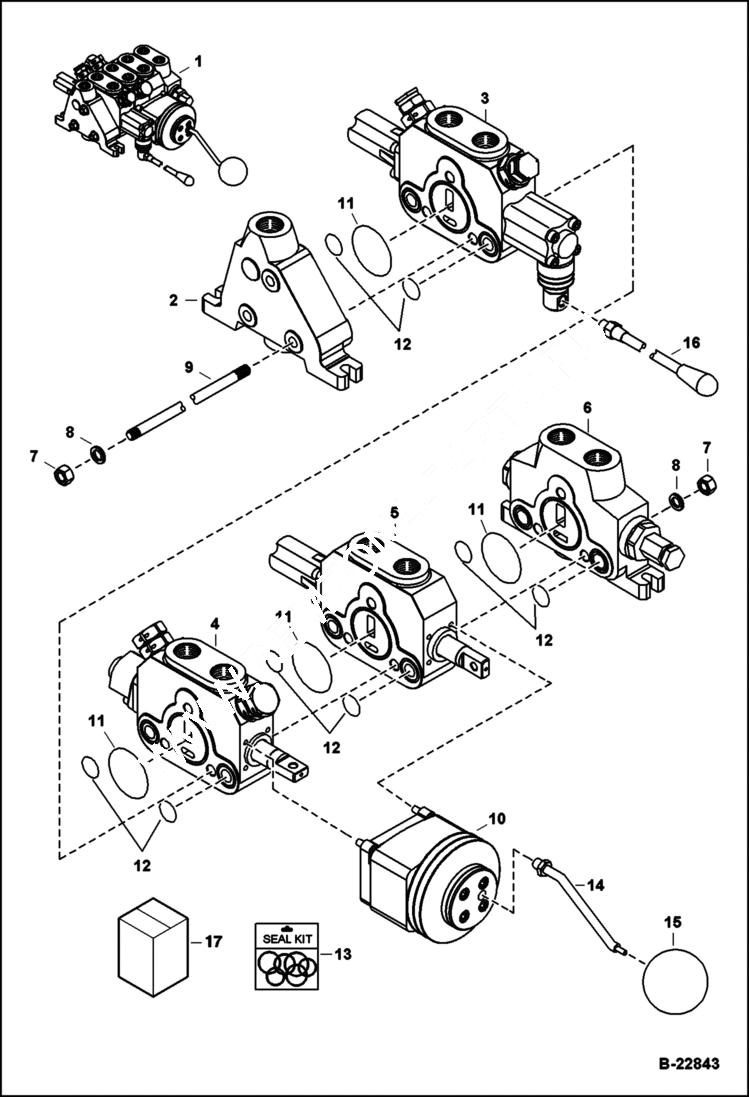

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY (Loader Control Valve Assy) HYDRAULIC SYSTEM

1

6962695

DISTRIBUTOR W/Ref. 2-6, 9-10

2

6682381

SECTION outlet

3

6683252

SECTION aux.

4

6683253

SECTION tilt

5

6682403

SECTION lift

6

6682402

SECTION inlet

7

NUT NLA

8

WASHER NLA

9

BOLT NLA

10

6682406

KIT JOYSTICK

11

O-RING NSS

12

O-RING NSS

13

6969977

SEAL KIT

14

6962775

LEVER lever

15

6960754

KNOB

16

6960897

LEVER

17

6969514

KIT W/Ref. 7,8,9
