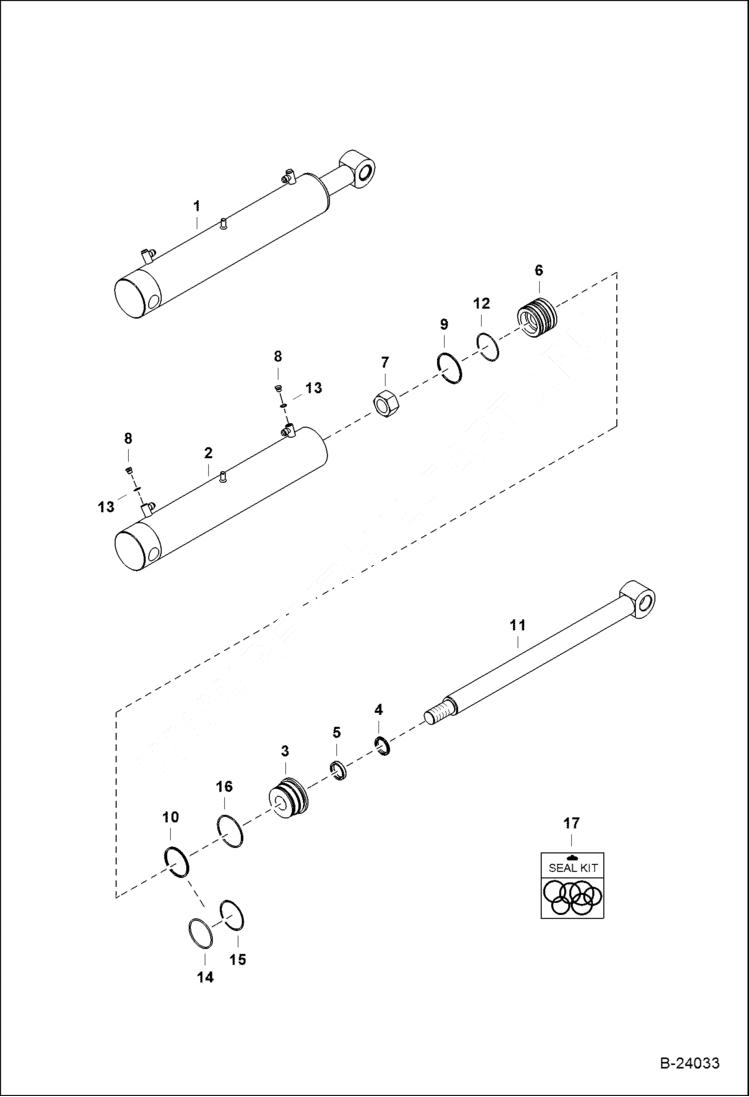

Запчасти Bobcat B100 STABILIZER CYLINDER Center Mount Backhoe HYDRAULIC SYSTEM

1

6817191

CYLINDER Ref. 2-9,11-16

2

TUBE NLA - Order 6817191 - Was 6817198 - A

3

6806124

HEAD

4

6690707

WIPER, ROD CYL Was 6665086 - A

5

6667326

SEAL

6

6815011

PISTON

7

6810539

NUT

8

6812170

PLUG W/Ref. 13

9

1522534

SEAL

10

7008778

SEAL, QUAD

11

6817195

SHAFT W/A

12

25K30202

O RING 10 Was 54K30202 - B

13

75K3

O-RING

14

25K40208

O RING 10 Was 54K40208 - B

15

73K228

BACK-UP RING

16

82K230

O-RING Was 58K-230 - A

17

7135559

SEAL KIT Ref. 4, 5, 7, 9, 10, 12, & 16 - Was 6816537 - A
