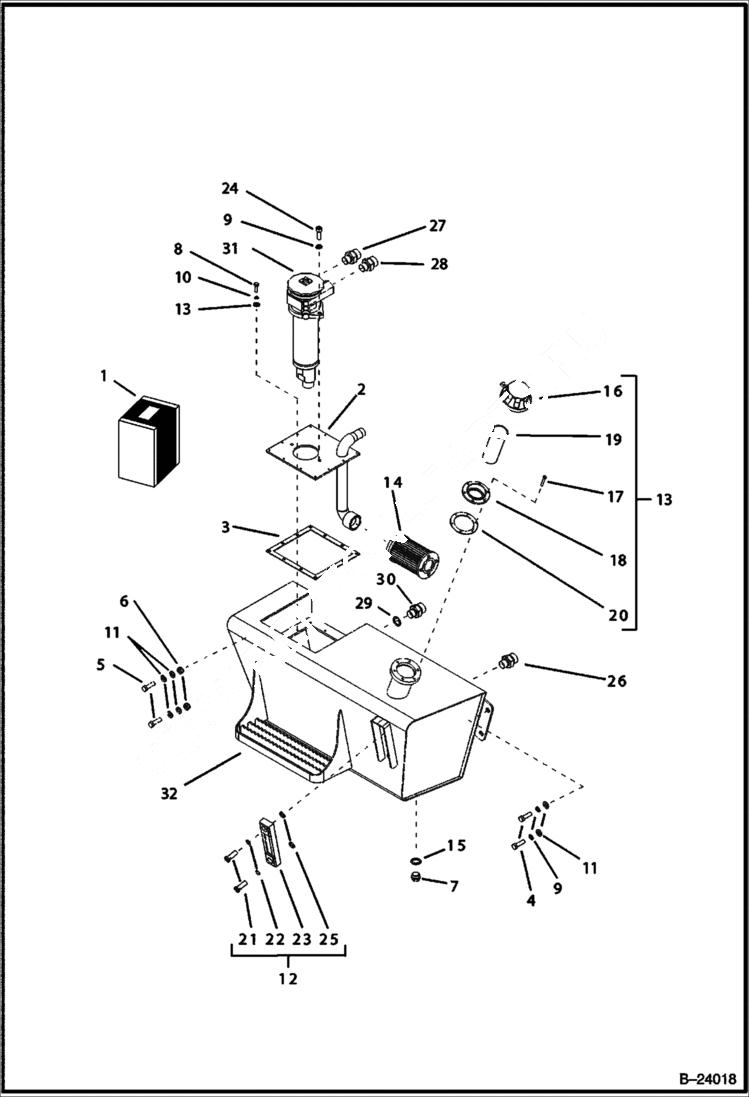

Запчасти Bobcat B100 HYDRAULIC TANK HYDRAULIC SYSTEM

1

6962699

TANK Ref. 2 - 15, 24, 32

2

6960714

TANK assy

3

6960716

SEALING

4

1CM1020

BOLT

5

1CM1035

BOLT

6

16DM10

NUT

7

6960346

PLUG magnet

8

1CM620

BOLT Was 4CM620 - A

9

8EM100

WASHER

10

6964586

WASHER

11

6964625

WASHER

12

6960717

THERMOMETER oil level & temperature - Ref. 21,22, 23, 25

13

6960347

FITTING Ref. 16 - 20

14

6960718

STRAINER

15

6964540

RING

16

FITTING NSS

17

13GM5016

BOLT

18

FLANGE NSS

19

FILTER NSS

20

SEALING NSS

21

BOLT NSS

22

6960719

O-RING

23

BODY NSS

24

1GM1025

BOLT

25

DISTANCE NSS

26

6960720

FITTING

27

6960721

FITTING

28

6960722

FITTING

29

6962815

RING

30

6960723

FITTING

31

6960724

FILTER

32

6960715

TANK
