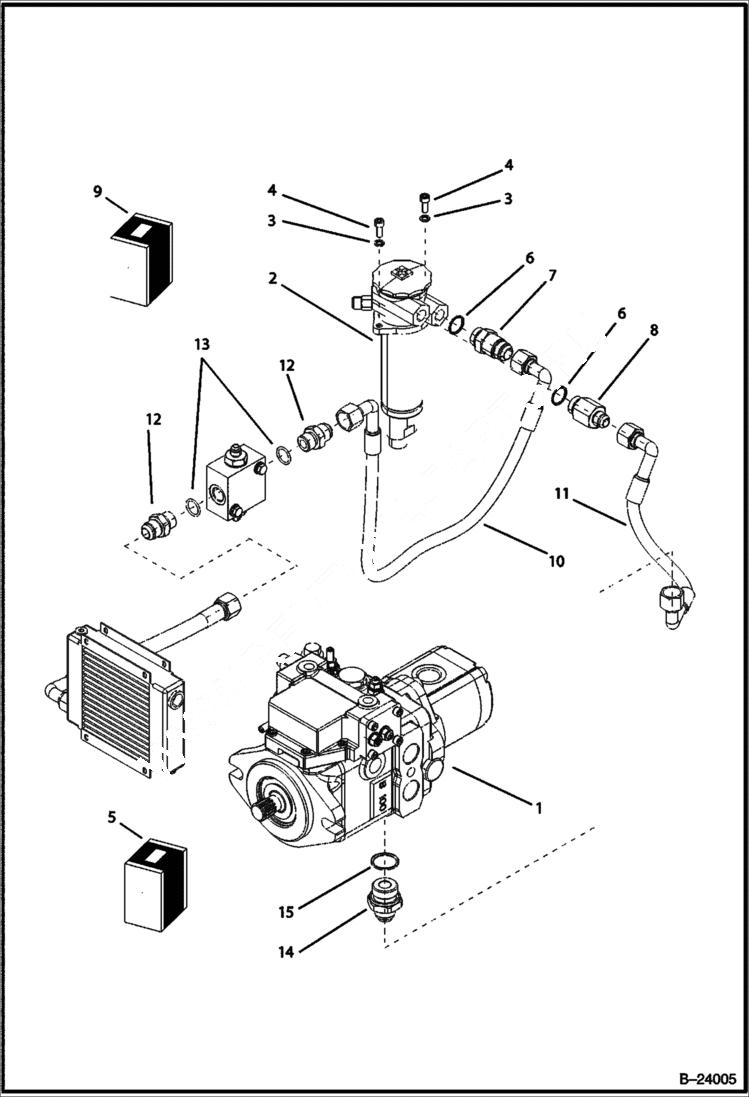

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

1

6960217

PUMP SET

2

6960724

FILTER

3

6EM10

WASHER

4

1GM1025

BOLT

5

6966825

FITTING ref 12,13

6

6966040

SEAL

7

6966043

FITTING

8

6966130

FITTING

9

6966081

FITTING ref 14,15

10

6967291

HOSE

11

6966930

HOSE

12

FITTING NSS

13

SEAL NSS

14

FITTING NSS

15

SEAL NSS
