HYDRAULIC CIRCUITRY Frame

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM

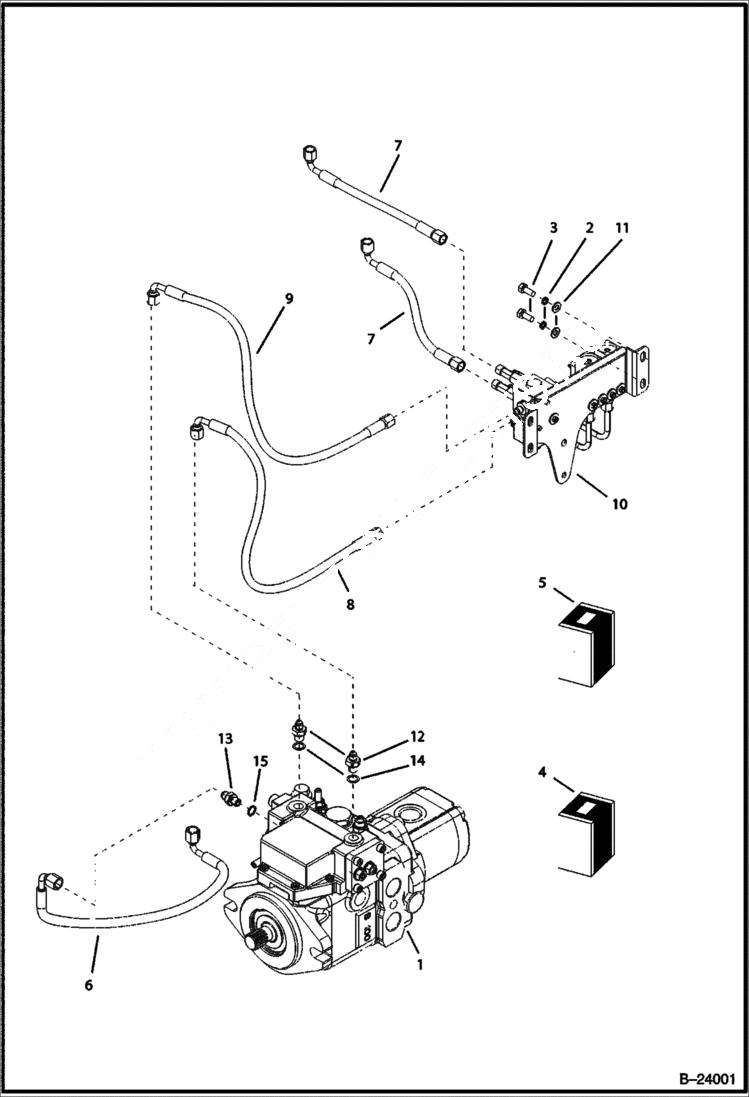

Схема запчастей Bobcat B100 - HYDRAULIC CIRCUITRY Frame HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6960217

PUMP SET

2

8EM80

WASHER

3

1CM816

BOLT Was 4CM816 - A

4

6966071

FITTING Ref. 13, 15

5

6966072

FITTING Ref. 12, 14

6

6966927

HOSE

7

6965900

HOSE

8

6965902

HOSE

9

6965901

HOSE

10

6966035

DRIVING BLOCK

11

6964631

WASHER

12

FITTING NSS

13

FITTING NSS

14

SEAL NSS
