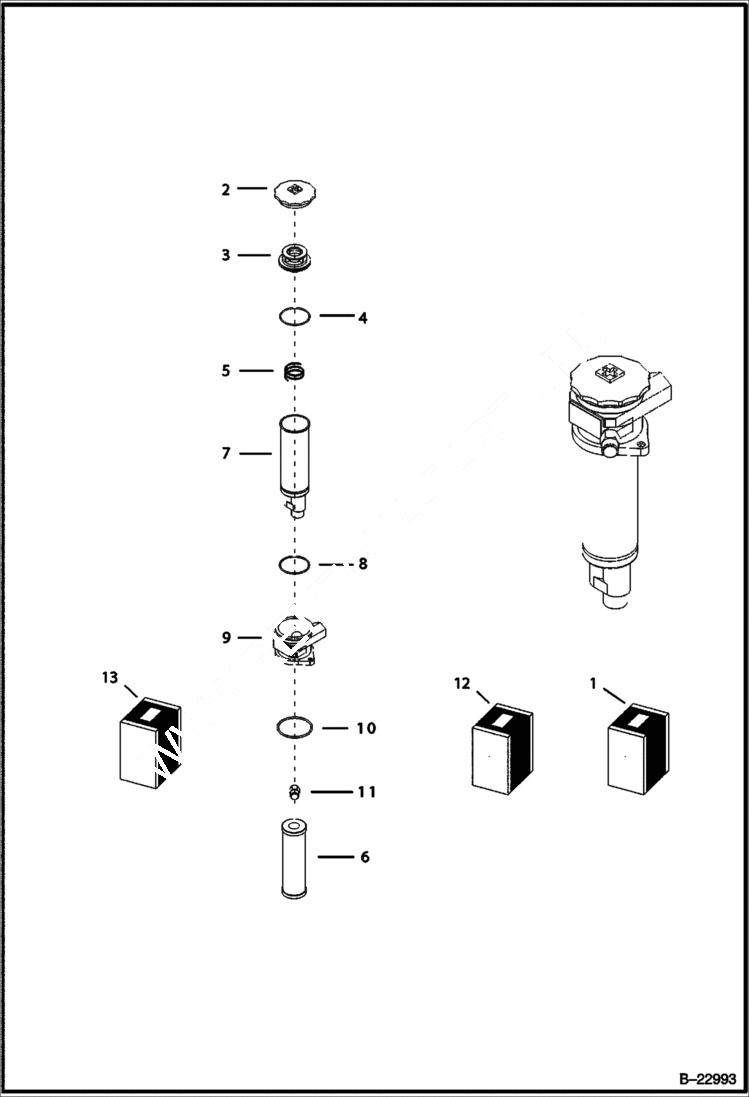

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Filter HYDRAULIC SYSTEM

1

6960724

FILTER Ref. 12, 13

2

COVER NSS

3

PRESSURE SNAP NSS

4

O-RING NSS

5

SPRING NSS

6

6961187

ELEMENT

7

LOWER PART NSS

8

O RING NSS

9

BODY FILTER NSS

10

O RING NSS

11

6961363

SENSOR

12

6961364

SEAL KIT Ref. 4, 8, 10, 11

13

6961365

FILTER Ref. 2, 3, 5, 7, 9
