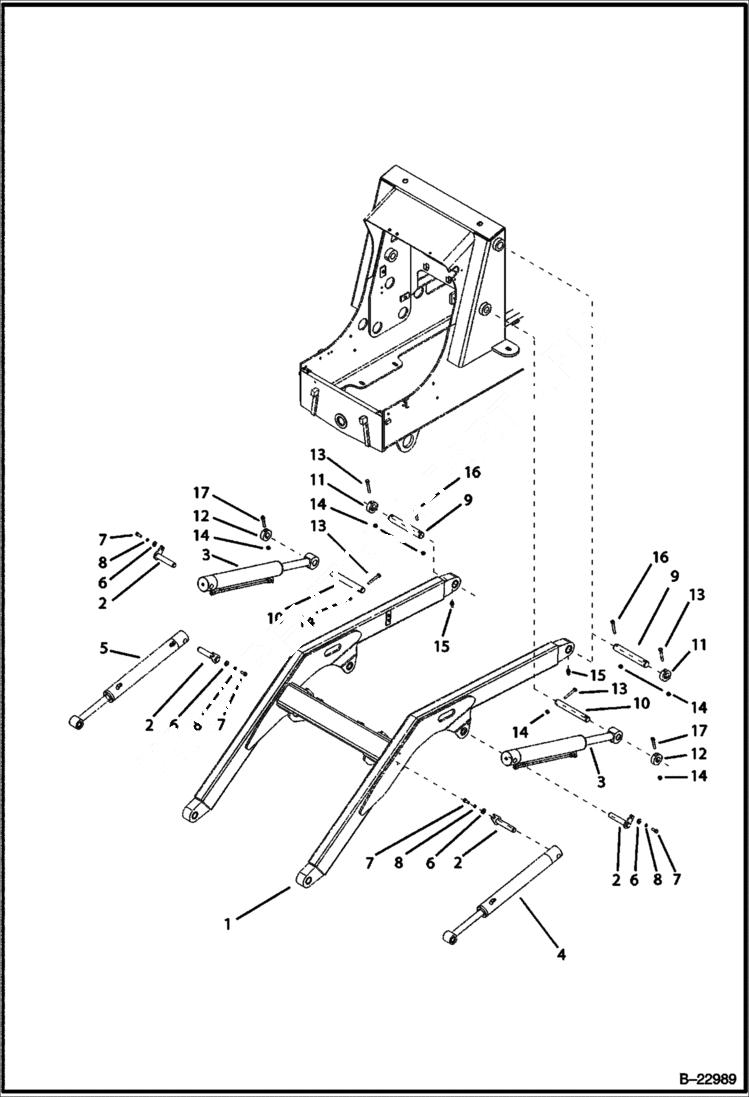

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Loading Arms HYDRAULIC SYSTEM

1

6967188

LOADING ARMS

2

6968140

PIN

3

6815317

CYLINDER Was 6964498 - A

4

6964500

CYLINDER

5

7100589

CYLINDER Was 6967273 - A

6

6964625

WASHER

7

1CM1025

BOLT

8

8EM100

WASHER

9

6960676

PIN

10

6960681

PIN

11

6960677

RING

12

6963229

RING

13

1CM1075

BOLT

14

16DM10

NUT

15

6962268

GREASE FITTING

16

1GM1075

BOLT

17

1GM1060

BOLT
