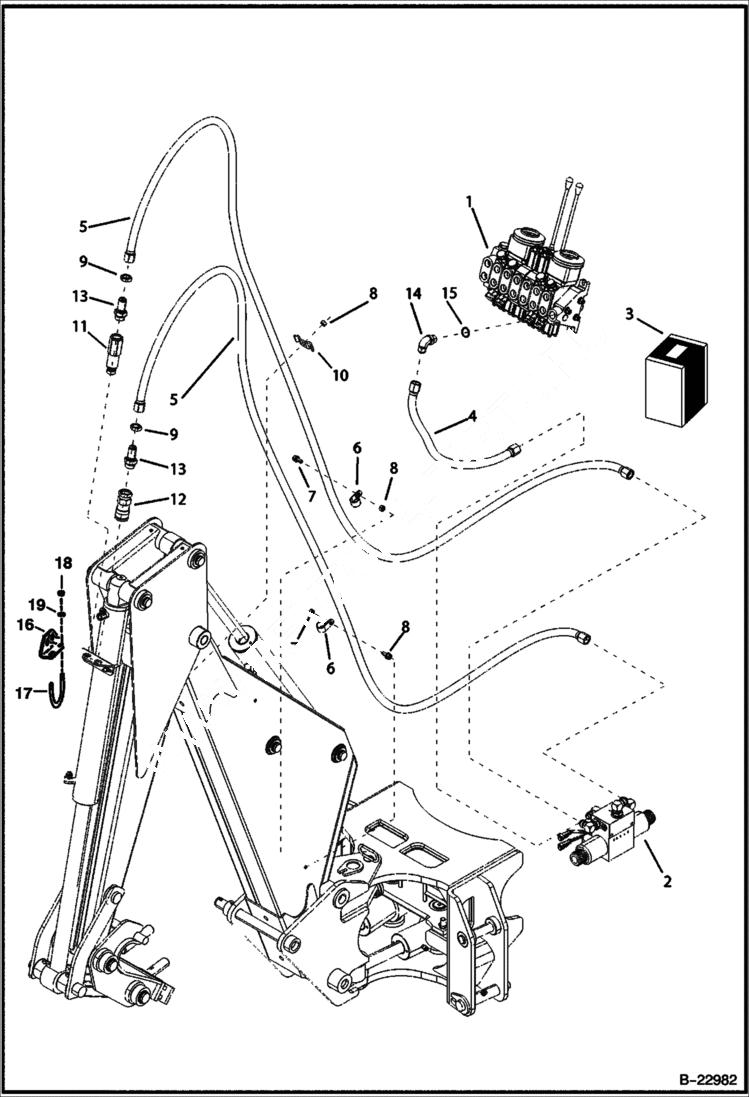

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Center Mount Backhoe HYDRAULIC SYSTEM

1

6967314

DISTRIBUTOR

2

6687776

VALVE ASMBLY Was 6675941 - A

3

6966088

FITTING Ref. 14,15

4

6966944

HOSE

5

6966946

HOSE

6

30H45

CLIP

7

35C612

BOLT

8

81D6

NUT

9

86F7

LOCK NUT

10

6591804

CLAMP

11

6674688

COUPLER, FF MALE straight

12

6672960

COUPLER, FF FEMALE straight

13

6711625

FITTING

14

FITTING NSS

15

SEAL NSS

16

6537312

PLATE

17

6537313

U-BOLT

18

81D5

NUT

19

25E17

WASHER 5
