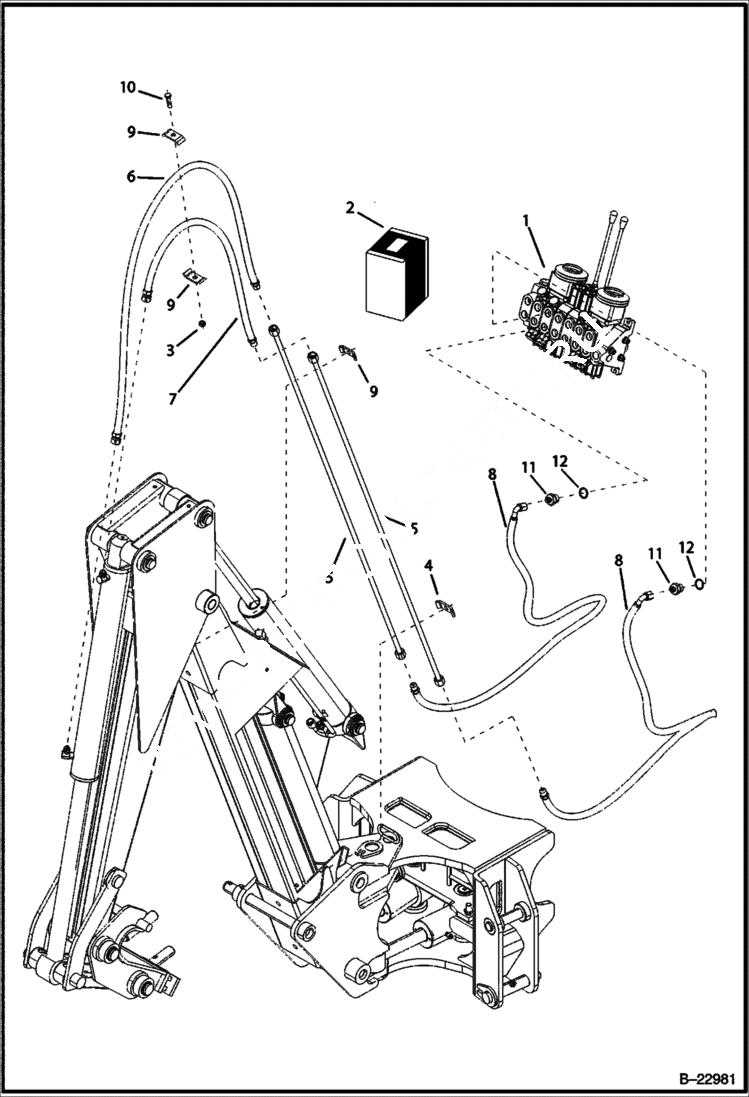

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Center Mount Backhoe HYDRAULIC SYSTEM

1

6967314

DISTRIBUTOR

2

6966079

FITTING Ref. 11,12

3

81D6

NUT

4

6537761

CLAMP

5

6532975

TUBE

6

6538437

HOSE

7

6538438

HOSE

8

6966939

HOSE

9

6502426

CLAMP

10

1C624

BOLT

11

FITTING NSS

12

SEAL NSS
