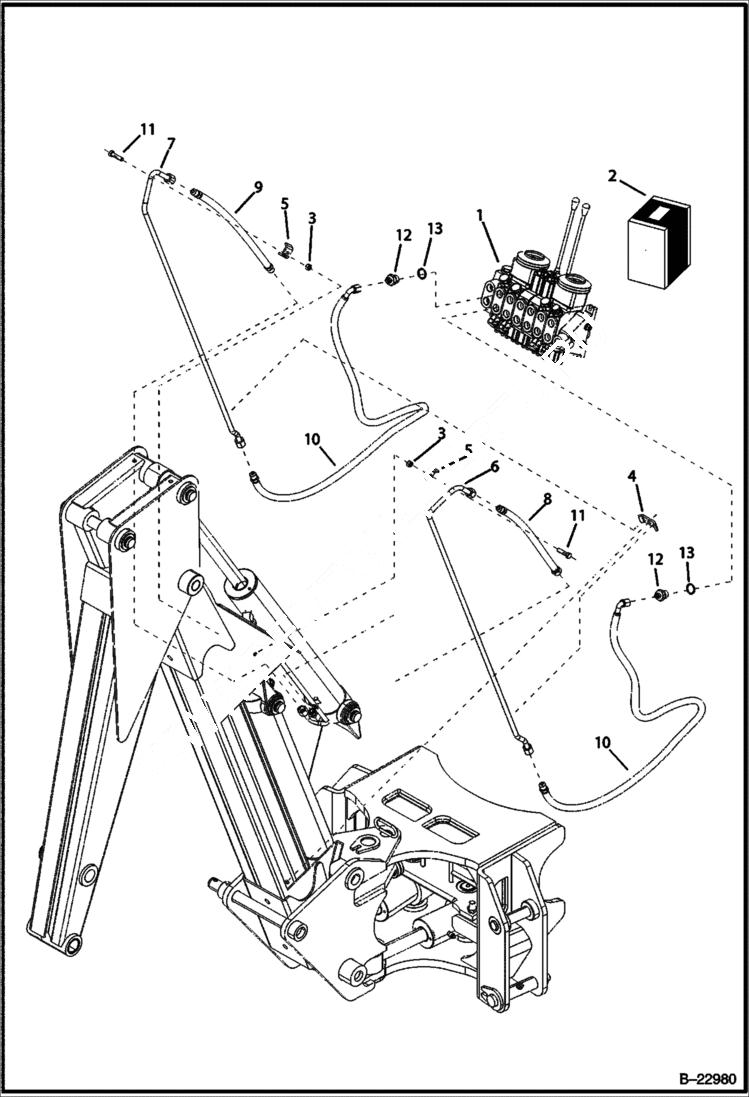

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Center Mount Backhoe HYDRAULIC SYSTEM

1

6967314

DISTRIBUTOR

2

6966079

FITTING Ref. 12,13

3

81D6

NUT

4

6537761

CLAMP

5

6562266

CLAMP

6

6532973

TUBE

7

6532974

TUBE

8

6534348

HOSE

9

6534349

HOSE

10

6966939

HOSE

11

1C624

BOLT

12

FITTING NSS

13

SEAL NSS
