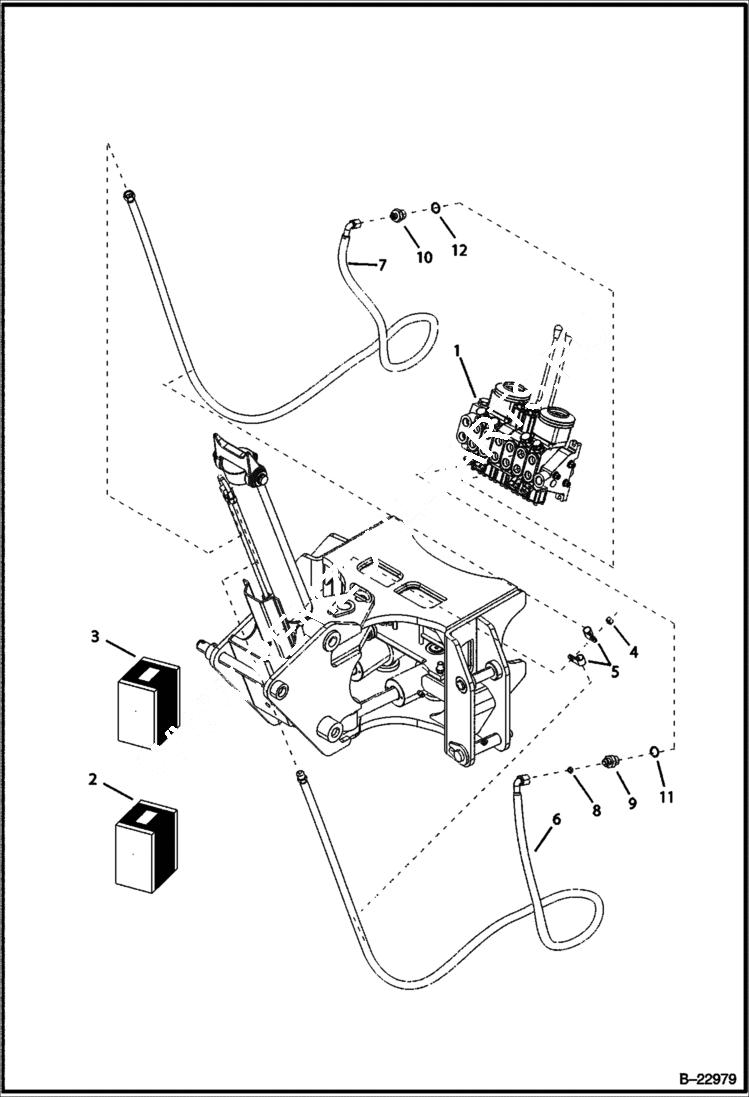

Запчасти Bobcat B100 HYDRAULIC CIRCUITRY Center Mount Backhoe HYDRAULIC SYSTEM

1

6967314

DISTRIBUTOR

2

6966069

FITTING Ref. 9,11

3

6966079

FITTING Ref.10,12

4

81D6

NUT

5

30H38

CLIP

6

6966942

HOSE

7

6966940

HOSE

8

6592865

SCREEN

9

FITTING NSS

10

FITTING NSS

11

SEAL NSS

12

SEAL NSS
