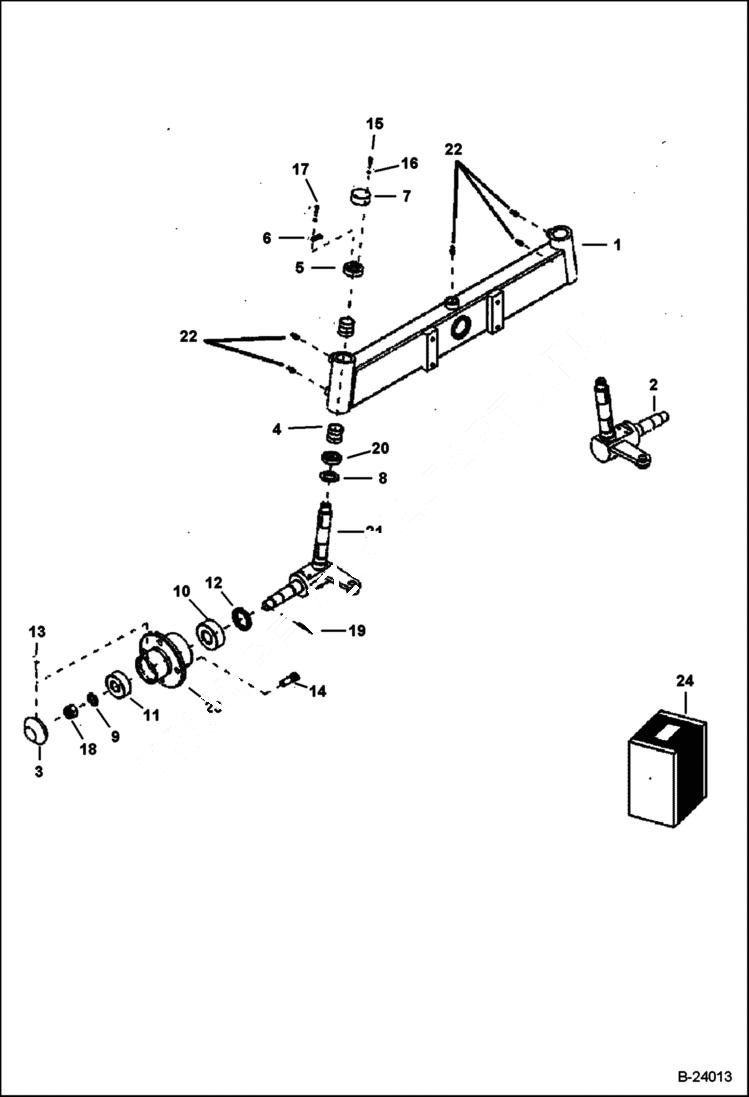

Запчасти Bobcat B100 STEERING FRONT Axles MAIN FRAME

1

6960155

AXLE W/A

2

6960156

PIN steering - right

3

6960161

CAP

4

6960164

BUSHING

5

6960165

NUT

6

6960166

KEY

7

6960167

CAP

8

6960168

BACK UP RING

9

6960169

WASHER

10

6964656

BEARING

11

6964657

BEARING

12

6964658

SEAL

13

25GM5012

BOLT

14

6962374

BOLT

15

1GM530

BOLT

16

8EM50

WASHER

17

1GM516

BOLT

18

30DM24

NUT

19

6964556

PIN

20

6964659

BEARING

21

6960174

PIN steering - left

22

1HM10

STRAIGHT FITTING OILER Was 6962809 - A

23

HUB NSS

24

6960159

HUB KIT Ref.14 and 23
