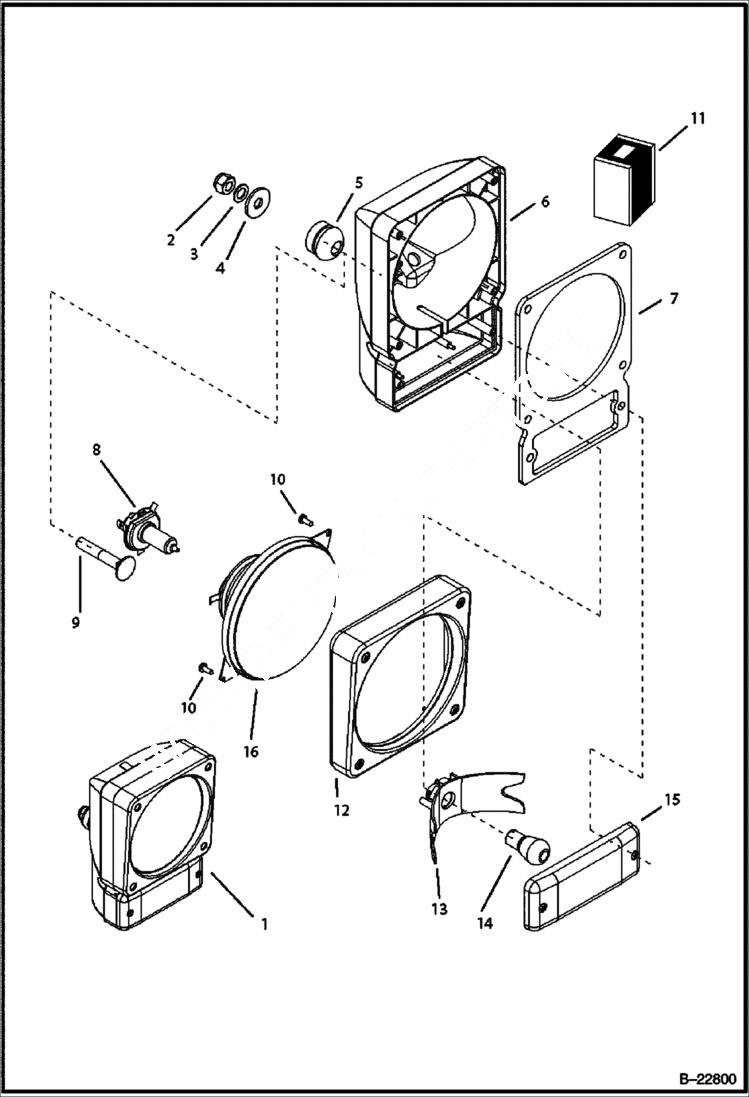

Запчасти Bobcat B100 ELECTRICAL Front Light ELECTRICAL SYSTEM

1

6960574

LIGHT assy. - Ref. 2-7, 9-15

2

13DM10

NUT

3

2EM10

WASHER

4

17EM100

WASHER

5

RING NLA

6

6969478

HOUSING

7

6969479

PLATE

8

6960565

BULB

9

BOLT NLA

10

BOLT NLA

11

6969480

SELECTOR Ref. 8,16

12

6969481

COVER

13

PLATE NLA

14

6960564

BULB

15

6969482

COVER

16

GLASS NLA
