Запчасти Bobcat B100 ELECTRICAL Dashboard ELECTRICAL SYSTEM

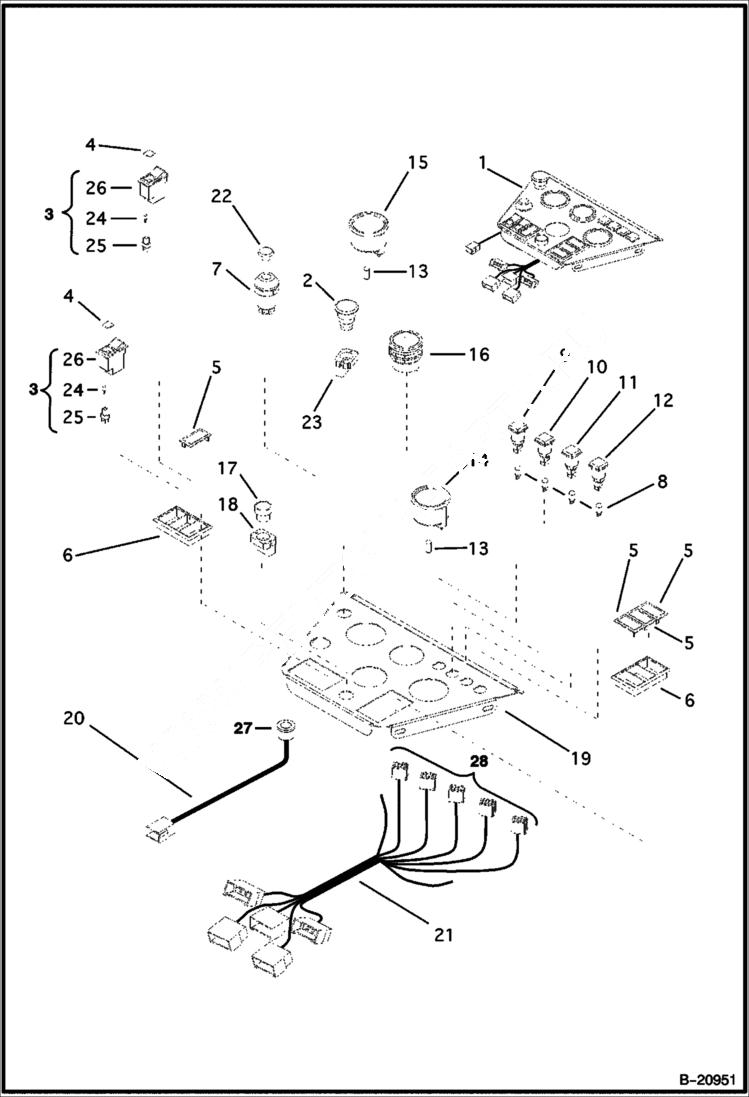

Схема запчастей Bobcat B100 - ELECTRICAL Dashboard ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6962170

DASH W/Refs. 2-23

2

SWITCH NLA - Emergency - Order (1) 6975295 & 6975296 - Was 6961354 - A

3

6960567

KIT light - W/Ref. 24, 24 & 26

4

6961366

SYMBOL Lights

5

6961367

COVER Switch

6

6961368

FRAME Switch

7

6961369

SWITCH Press to operate

8

6961370

BULB

9

6961371

LIGHT pre-heat

10

6961372

LIGHT alternator

11

6961373

LIGHT engine oil pressure

12

6961374

LIGHT hyd filter

13

6961375

BULB

14

6961376

GAUGE Engine temp thermometer

15

6961377

GAUGE Fuel - Ref. 2-5 - Face - OD 2.6'' - W/6 terminals

15

6966725

GAUGE Fuel - Face - OD 2.23'' - W/5 Terminals

16

6961378

GAUGE Hourmeter

17

6961356

SWITCH Engine

18

6961353

SWITCH

19

6961379

DASHBOARD

20

6961380

HARNESS

21

6961381

HARNESS Dashboard

22

6961382

COVER green

23

SWITCH NLA - Order (1) 6975295 & 6975296 - Was 6961355 - A

24

6960577

SWITCH

25

SWITCH NSS - Base

26

BASE NSS - switch - Order Ref. 3

27

6962084

125113 CONNECTOR

28

6961724

CONNECTOR

Выбрано товаров: 29
