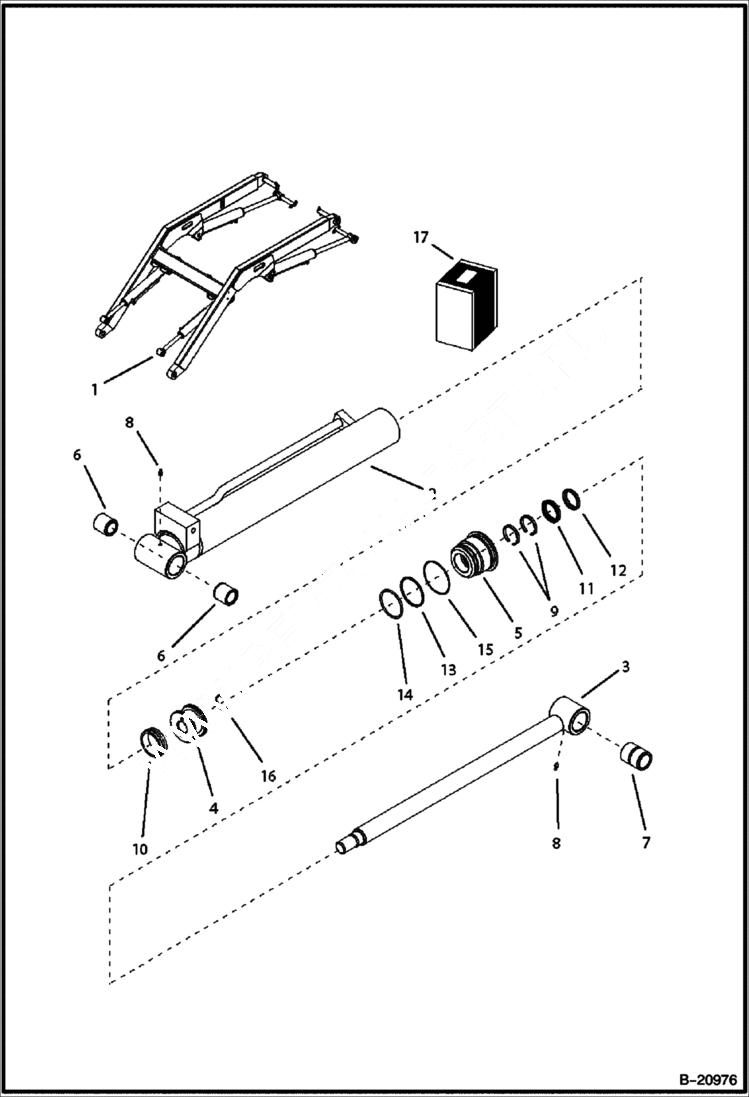

Запчасти Bobcat B100 TILT CYLINDER (Left) (5700 11056 & Below) HYDRAULIC SYSTEM

1

6960679

CYLINDER Ref. 2 - 16

2

6960299

HOUSING W/Ref. 6

3

6960302

ROD W/Ref. 7

4

6814835

PISTON Was 6960286 - A

5

6814839

HEAD CYLINDER Was 6960287 - A

6

6960300

BUSHING

7

6960301

BUSHING

8

6960285

FITTING Grease

9

6960295

SEAL

10

6960290

SEALING

11

6960294

SEAL

12

6960293

RING WIPER

13

6960296

BACK UP RING

14

6960291

O-RING

15

6960297

O-RING

16

6960292

O-RING

17

6962314

SEAL KIT PR55/PR30
