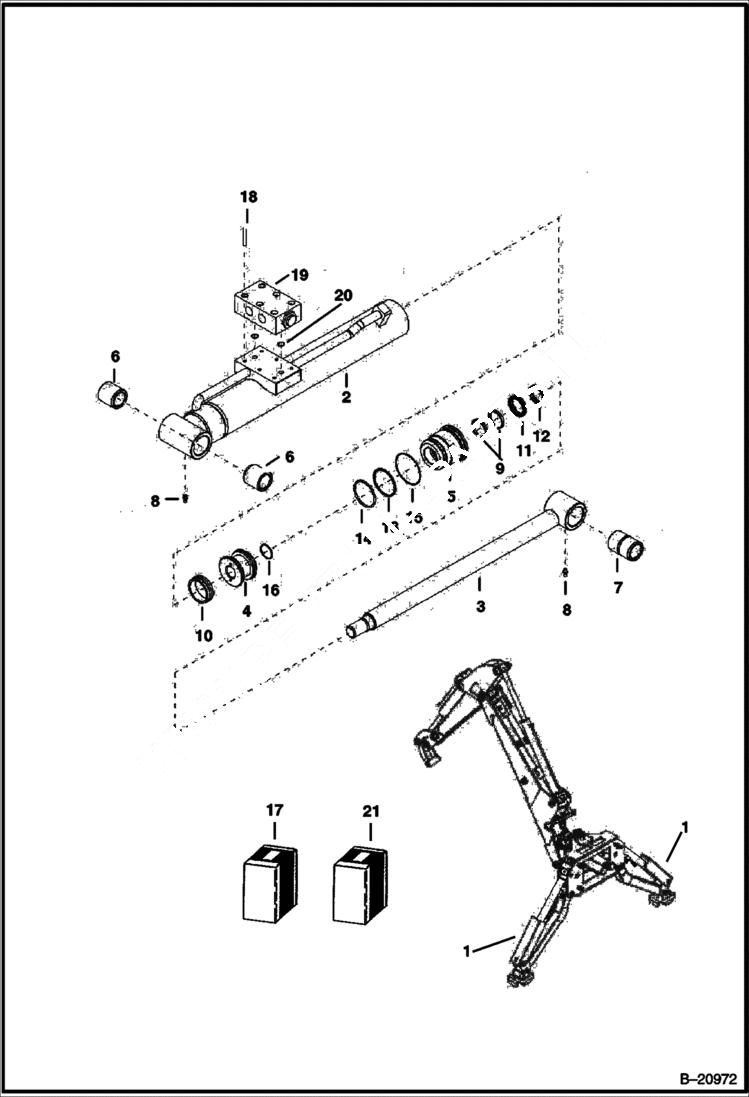

Запчасти Bobcat B100 STABILIZER CYLINDER HYDRAULIC SYSTEM

1

6960223

CYLINDER Ref. 2 - 20

2

6960307

HOUSING W/Ref. 6

3

6960306

ROD W/Ref. 7

4

6960286

PISTON

5

6960287

HEAD

6

6960300

BUSHING

7

6960301

BUSHING

8

6962268

GREASE FITTING

9

6960295

SEAL

10

6960290

SEALING

11

6960294

SEAL

12

6960293

RING WIPER

13

6960296

BACK UP RING

14

6960291

O-RING

15

6960297

O-RING

16

6960292

O-RING

17

6960305

HYDRAULIC LOCK W/Ref. 19,20

18

1GM640

BOLT

19

LOCK-BODY NLA

20

6960308

O-RING

21

6962314

SEAL KIT PR55/PR30 W/Ref. 9-16
