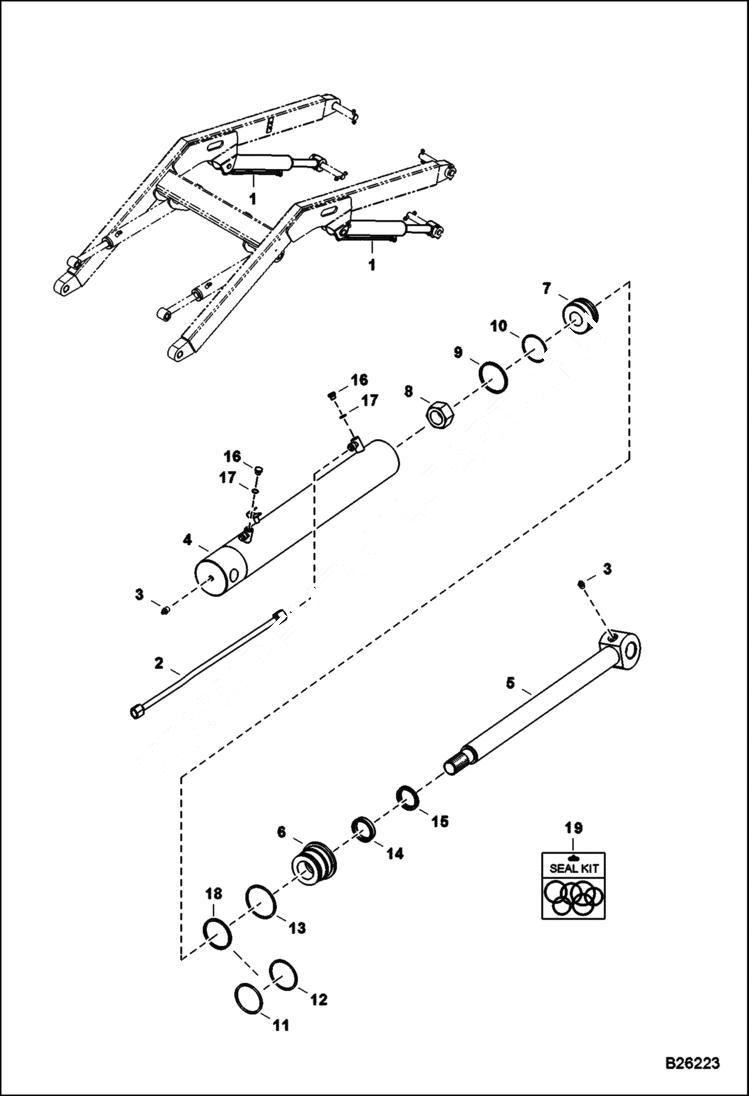

Запчасти Bobcat B100 LIFT CYLINDER 5701 11057 & Above HYDRAULIC SYSTEM

1

6815317

CYLINDER W/Ref. 2-17 - Was 6964498 - A

2

6964499

PIPE

3

10H25

FITTING, GREASE 5

4

6815322

BODY

5

6815318

SHAFT

6

6806124

HEAD

7

6815011

PISTON

8

6810539

NUT

9

1522534

SEAL

10

25K30202

O RING 10 Was 54K30202 - B

11

25K40208

O RING 10 Was 54K40208 - B

12

73K228

BACK-UP RING

13

82K230

O-RING

14

6667326

SEAL

15

6690707

WIPER, ROD CYL Was 6665086 - A

16

10H25

FITTING, GREASE 5

16

6812170

PLUG W/Ref. 17

17

75K3

O-RING

18

7008778

SEAL, QUAD

19

7135559

SEAL KIT W/Ref. 8-10, 13-15, & 18 - Was 6814352 - A
