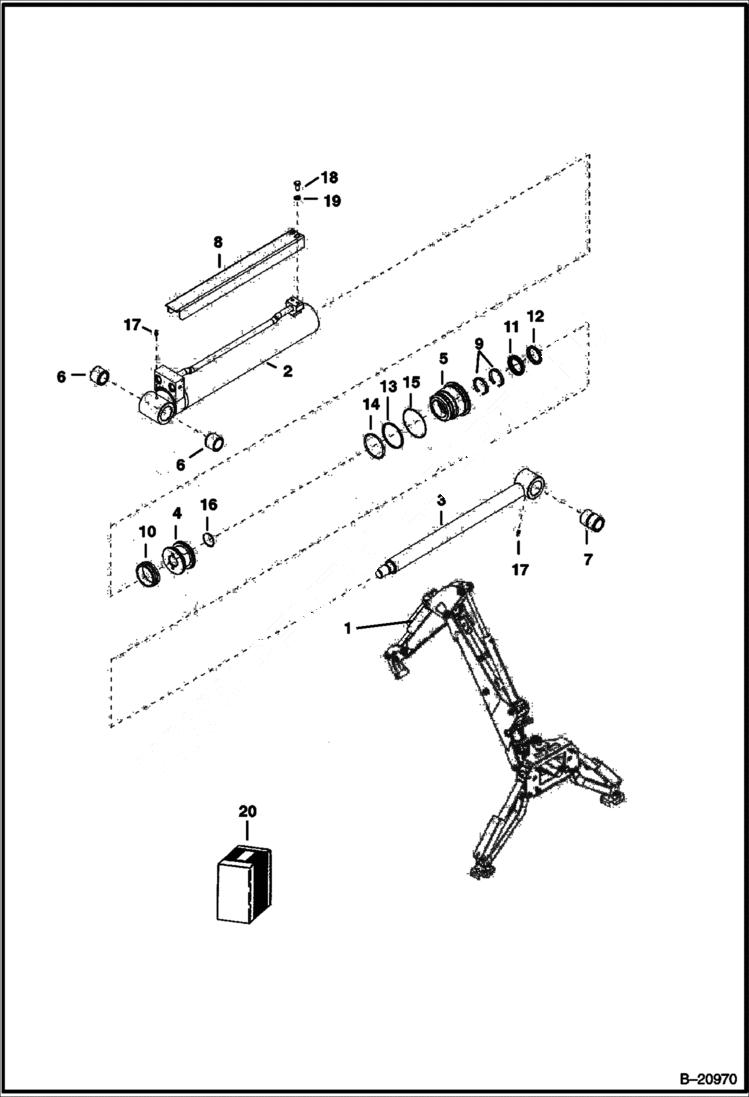

Запчасти Bobcat B100 BUCKET CYLINDER (5700 11038 & Below) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
6960135
CYLINDER Ref. 2 - 19
2
6960324
HOUSING W/Ref. 6
3
6960185
ROD W/Ref. 7
4
6960309
PISTON
5
6960321
HEAD
6
6960182
BUSHING
7
6960179
BUSHING
8
6960323
COVER
9
6960280
SEAL
10
6960314
SEAL
11
6960277
SEAL
12
6960279
WIPER
13
6960317
BACK-UP RING
14
6960318
O-RING
15
6960319
O-RING
16
6960278
O-RING
17
6962268
GREASE FITTING
18
1CM816
BOLT
19
6964587
WASHER
20
6962303
SEAL KIT W/Ref. 9-16
Выбрано товаров: 20
