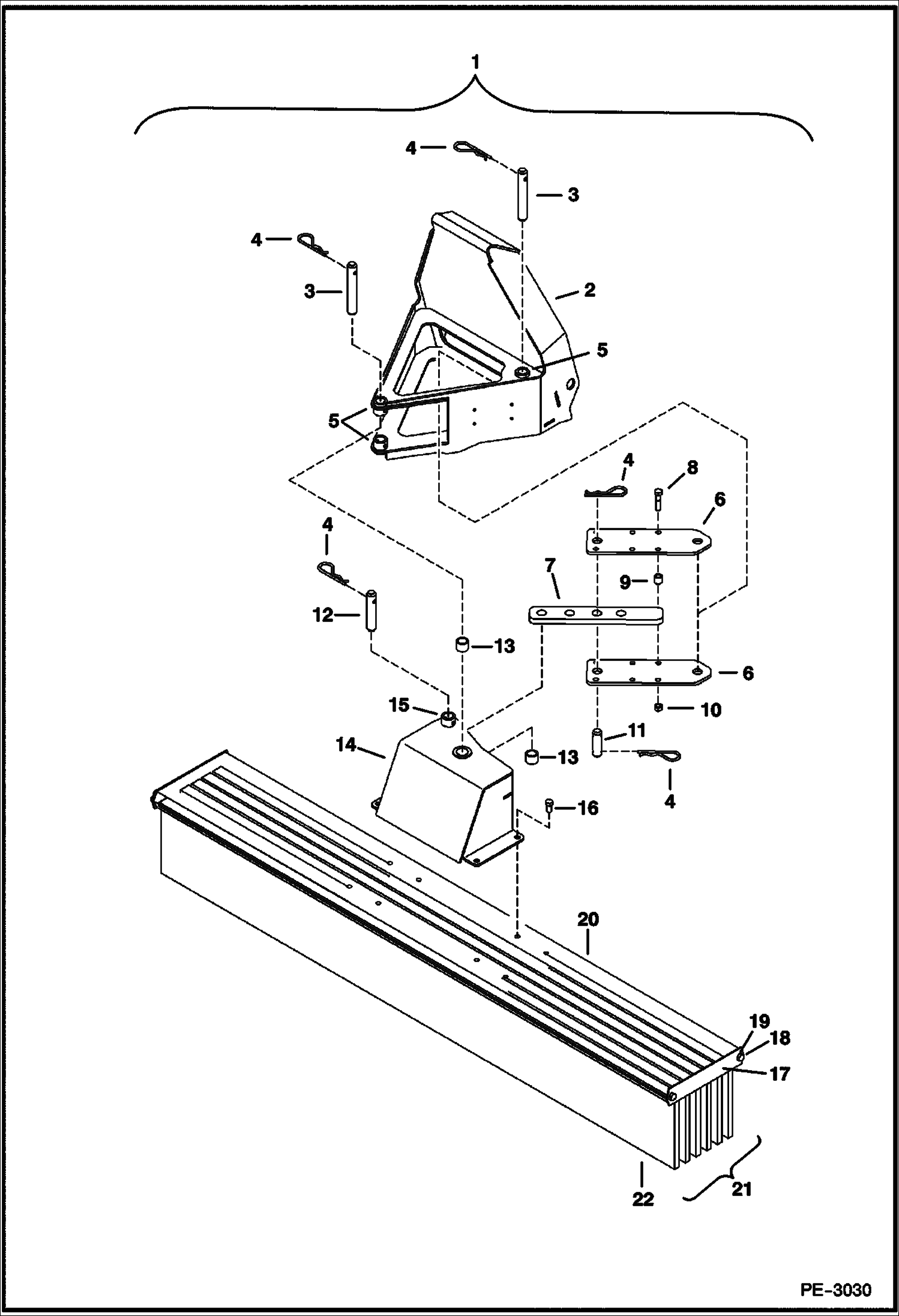

Запчасти Bobcat WHISKER BROOM WHISKER BROOM (Main Frame) (60 A3HU) (2300 Utility Vehicle) Универсальный мини-грузовик

1

WHISKER BROOM SALES #7127391 - Ref. 2-22

2

7109349

MOUNT

3

7109359

PIN

4

6675029

PIN

5

7117672

BUSHING

6

7125055

PLATE

7

7125056

PLATE

8

17C626

BOLT

9

6810274

SPACER

10

95D6

NUT

11

7125057

PIN

12

7109360

PIN

13

6689113

BEARING

14

7113021

MOUNT

15

7117673

BUSHING

16

17C612

BOLT 5

17

6691158

END CAP

18

25G508

SCREW

19

4E5

WASHER

20

6689628

BROOM ASSY

21

6691159

BRISTLE SET Set of 5 bristle strips

22

6691160

BRISTLE STRIP One bristle strip only
