Запчасти Bobcat WHEEL SAWS WHEEL SAW (Control Valve) (WS18 991800626 & Above) (WS24 991900831 & Above) Loader

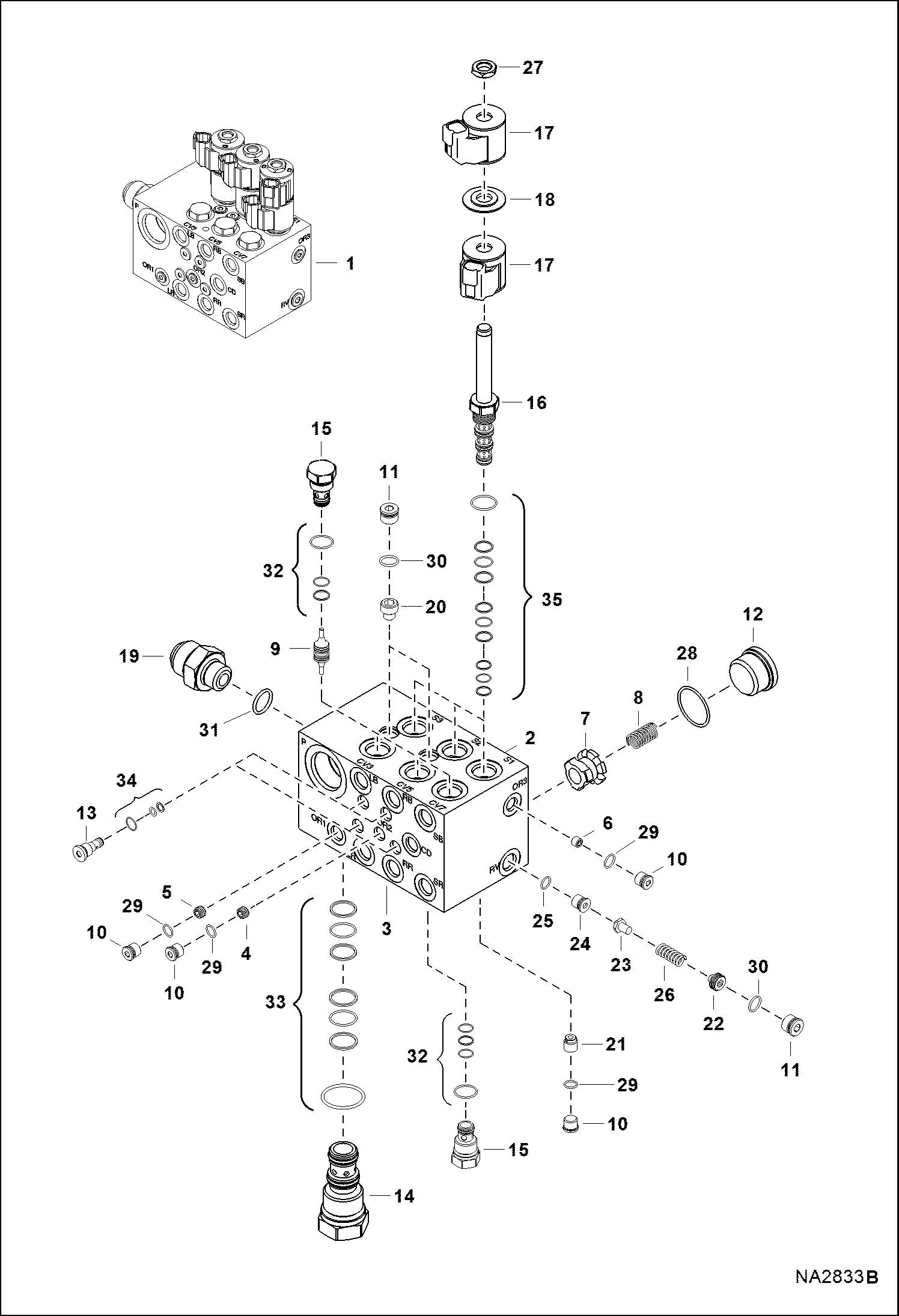

Схема запчастей Bobcat WHEEL SAWS - WHEEL SAW (Control Valve) (WS18 991800626 & Above) (WS24 991900831 & Above) Loader

Артикул

Название

Примечание

Количество

1

7011126

VALVE, CONTROL Ref. 2-31

2

7020596

BLOCK, PORT

3

PLUG NSS - Was 7008559 - A

4

7020597

ORIFICE

5

6669615

ORIFICE Was 6675959 - B

6

6673989

ORIFICE

7

7020598

POPPET

8

7020599

SPRING

9

6664028

PISTON, VALVE single acting non-sealed - Use W/Ref. 15 (6664026 check valve)

9

6673990

PISTON, VALVE double acting sealed - Use W/Ref. 15 (6669728 check valve)

10

6665719

PLUG W/Ref. 29 - Was 6669727 - A

11

6669620

PLUG W/Ref. 30

12

7020600

PLUG W/Ref. 28

13

6673992

VALVE, CHECK

14

6674442

VALVE

15

6664026

VALVE, CHECK CV08-20 4 - number stamped on this check valve - Use W/Ref. 9 (6664028 piston)

15

6669728

VALVE, CHECK CV08-20 25 - number stamped on this check valve - Use W/Ref. 9 (6673990 piston)

16

6673986

SPOOL, VALVE

17

6691649

COIL

18

6689389

SPACER

19

7020601

VALVE, CHECK W/Ref. 31

20

7020602

ORIFICE

21

7020603

ORIFICE

22

7020604

PLUG

23

7020605

POPPET

24

7020606

PLUG

25

O-RING NSS - Was 6678837 - B,D

26

SPRING NSS - Was 7020607 - B,D

27

6668820

NUT

28

O-RING NSS - Order Ref. 12

29

7020655

O-RING

30

O-RING NSS - Order Ref. 11

31

O-RING NSS - Order Ref. 19

32

6672515

KIT, SEAL

33

6692736

KIT, SEAL Was 6677156 - B,D

34

6673995

KIT, SEAL

35

6672756

KIT, SEAL Was 6667180 - A

Выбрано товаров: 37
