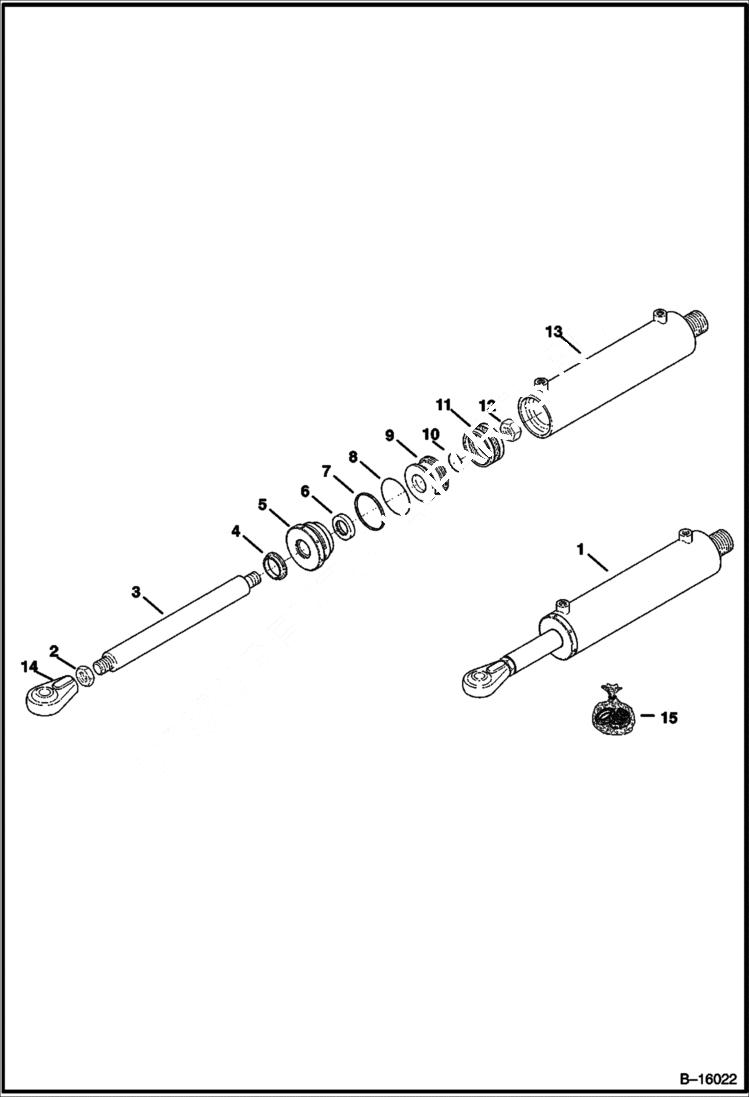

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Depth Control Cylinder) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader

1

6678485

CYLINDER ASSY WS18 - W/Ref. 2 - 14

1

6678486

CYLINDER ASSY WS24 - W/Ref. 2 - 14

2

6678419

NUT

3

6678481

ROD WS18

3

6678482

ROD WS24

4

6676817

SEAL

5

6676830

HEAD

6

6676819

SEAL

7

6676831

SEAL

8

6676832

O-RING

9

6676833

PISTON

10

6676834

O-RING

11

6676835

SEAL

12

6676836

NUT

13

6678483

CASE WS18

13

6678484

CASE WS24

14

6678480

CLEVIS

15

6676839

SEAL KIT
