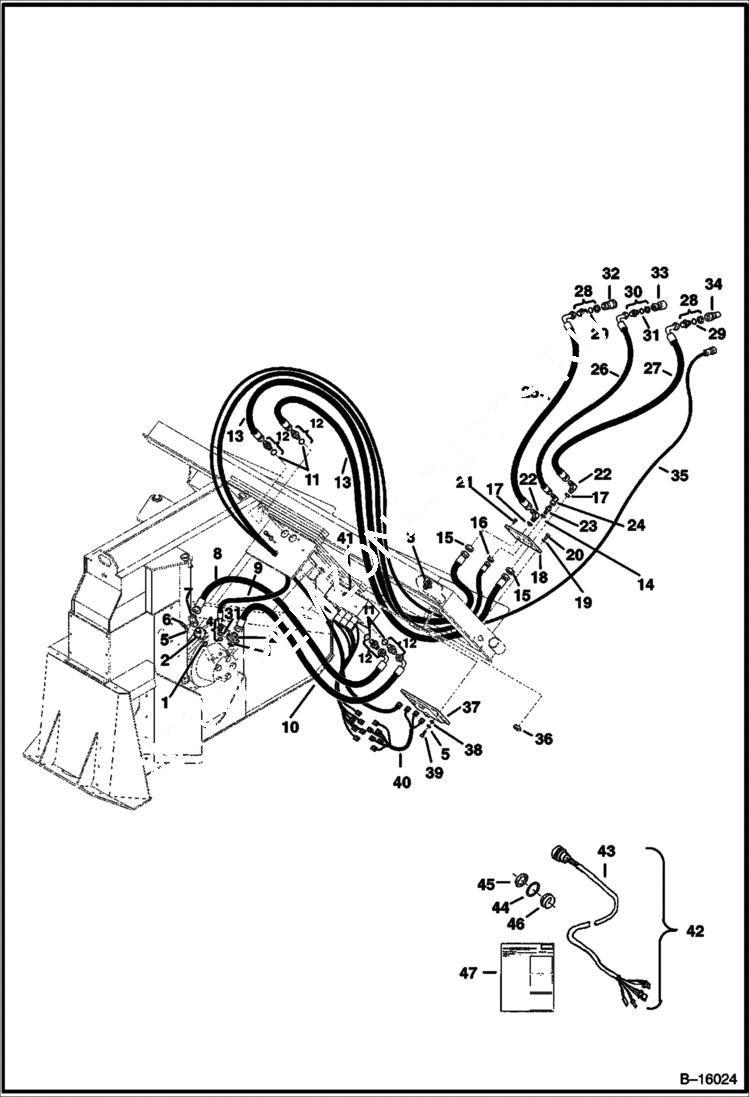

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Hydraulic & Electric Circuitry) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader

1

6678499

O-RING

2

6678500

FLANGE

3

6677760

RECEPTACLE Was 6678514 - A

4

6678501

ADAPTER

5

6676752

WASHER Was 6678443 - A

6

6678502

BOLT

7

6678503

ELBOW

8

6678504

HOSE WS18

8

6678505

HOSE WS24

9

6678506

HOSE WS18

9

6678507

HOSE WS24

10

6678508

HOSE WS18

10

6678509

HOSE WS24

11

6676884

O-RING

12

6676885

ADAPTER

13

6678510

HOSE

14

6678511

WASHER

15

6676891

NUT

16

6676888

NUT

17

6676894

WASHER

18

6676849

PLATE

19

6676755

WASHER Was 6676752 - B

20

6677233

BOLT Was 6676893 - B

21

6676892

BOLT

22

6676895

ELBOW

23

6676887

ADAPTER

24

6676882

ELBOW

25

6676850

HOSE

26

6676851

HOSE Was 6678512 - A

27

6676852

HOSE

28

6676877

ADAPTER

29

6676878

O-RING

30

6676897

ADAPTER

30

15KB0808

FITTING, HYD CONNECTOR

31

6676896

O-RING

32

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

32

6687636

COUPLER, FF FEMALE straight - high flow - Faster #3FF112-34SAE-F

33

6667805

COUPLER, FF FEMALE straight - Was 6667806 - B

34

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

34

6688454

COUPLER, FF MALE straight - high flow - 83,6 mm (3.29'') long

35

6726837

HARNESS 7-pin

35

7194131

HARNESS, INPUT 7-PIN

36

NUT NSS - Order Ref. 3 - Was 6678513 - A

37

6678675

CONTROLLER, ACD Was 6676514 - A

37

6697951

CONTROLLER, ACD

38

6676786

WASHER

39

1CM1025

BOLT Was 6677238 - A

40

6719694

HARNESS ACD to valve

40

7177288

HARNESS, PLANER ACD to valve

41

VALVE See Illustration WHEEL SAW/ B18102C

41

VALVE, CONTROL See Illustration WHEEL SAW/ NA2833B

42

6727457

KIT 14-pin harness conversion - converts 7-pin wheel saw to Use W/ 14-pin loader - Ref. 43-47

42

7196479

KIT, HARNESS 14-PIN 14-pin harness conversion - converts 7-pin wheel saw to Use W/ 14-pin loader - Ref. 43-47

43

6727405

HARNESS 14-pin conversion

43

7194132

HARNESS, 14-PIN conversion

44

6664037

WASHER

45

6664036

NUT

46

6673680

RECEPTACLE, TWIST-LOC

47

6901005

INSTRUCTIONS
