WHEEL SAW (Mounting Frame) (WS18 991800101 & Above) (WS24 991900101 & Above)

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Mounting Frame) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader

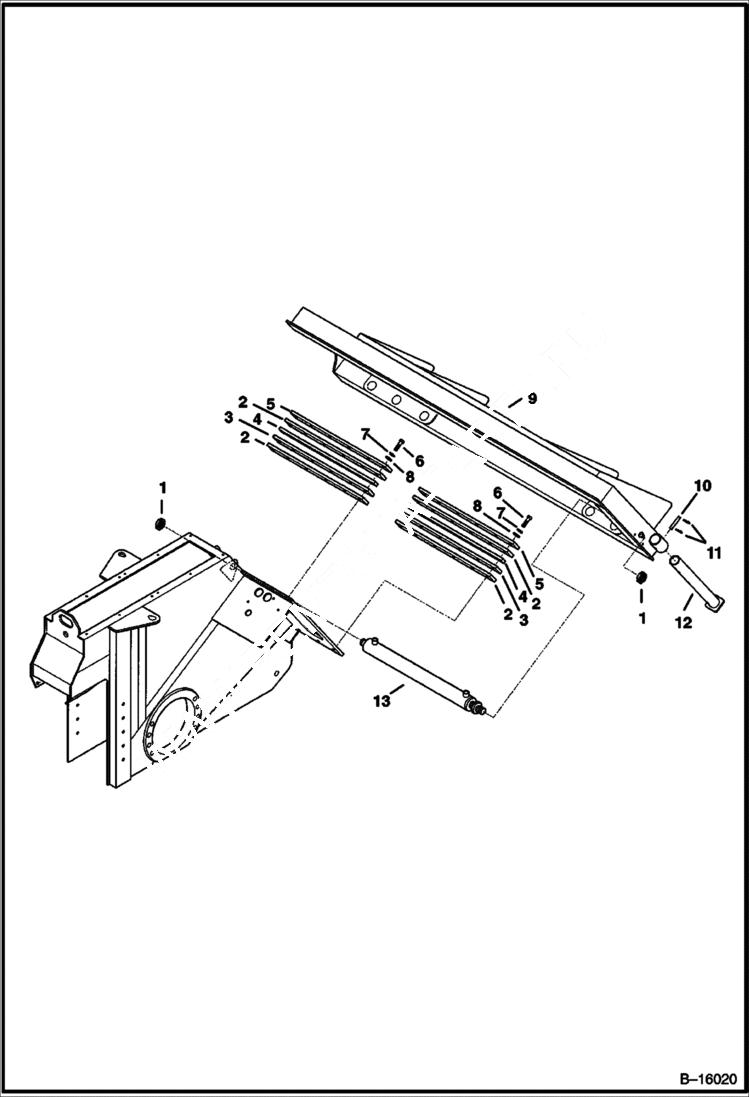

Схема запчастей Bobcat WHEEL SAWS - WHEEL SAW (Mounting Frame) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6676733

NUT

2

6678456

GUIDE

3

6678457

SPACER Was NLA - D

4

6678458

PLATE

5

6678459

PLATE

6

6676787

BOLT

7

6676741

WASHER

8

6676788

WASHER

9

6676875

BOBTACH FRAME

10

6676734

PIN

11

6676876

PIN

12

6678460

STAND

13

6676827

CYLINDER See Illustration WHEEL SAW/ B15792A SIDE SHIFT
