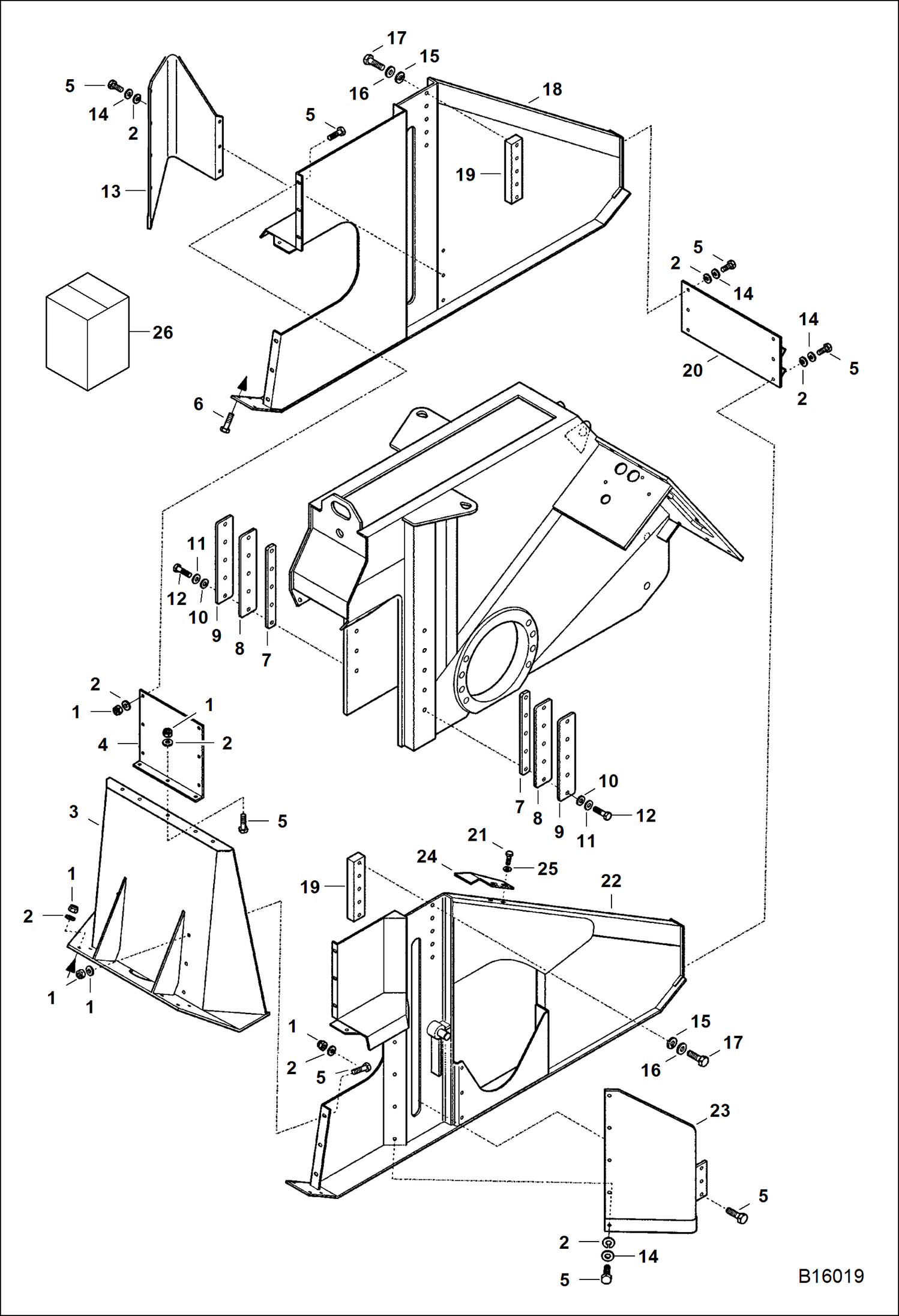

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Main Frame) (WS18 991800101 & Above) (WS24 991900101 & Above) Loader

1

53DM10

NUT Was 6677242 - A

2

6676786

WASHER

3

6678434

COVER WS18

3

6678435

COVER WS24

4

6678436

COVER WS18

4

6678437

COVER WS24

5

1CM1025

BOLT Was 6677238 - A

6

6677231

BOLT

7

6678438

GUIDE

8

6678439

PLATE

9

6678440

PLATE

10

6676788

WASHER

11

6676741

WASHER

12

6678441

BOLT

13

6678442

SHIELD WS18

13

6678445

SHIELD WS24

14

6676752

WASHER Was 6678443 - A

15

6678431

WASHER

16

6676761

WASHER

17

6678444

BOLT

18

6678446

FRAME WS18

18

6678447

FRAME WS24

19

6678448

GUIDE

20

6678449

COVER WS18

20

6678450

COVER WS24

21

6677233

BOLT

22

6678451

FRAME WS18

22

6678452

FRAME WS24

23

6678453

SHIELD WS18

23

6678454

SHIELD WS24

24

6679744

BRACKET depth indicator

25

6677758

WASHER Was 6678425 - A
