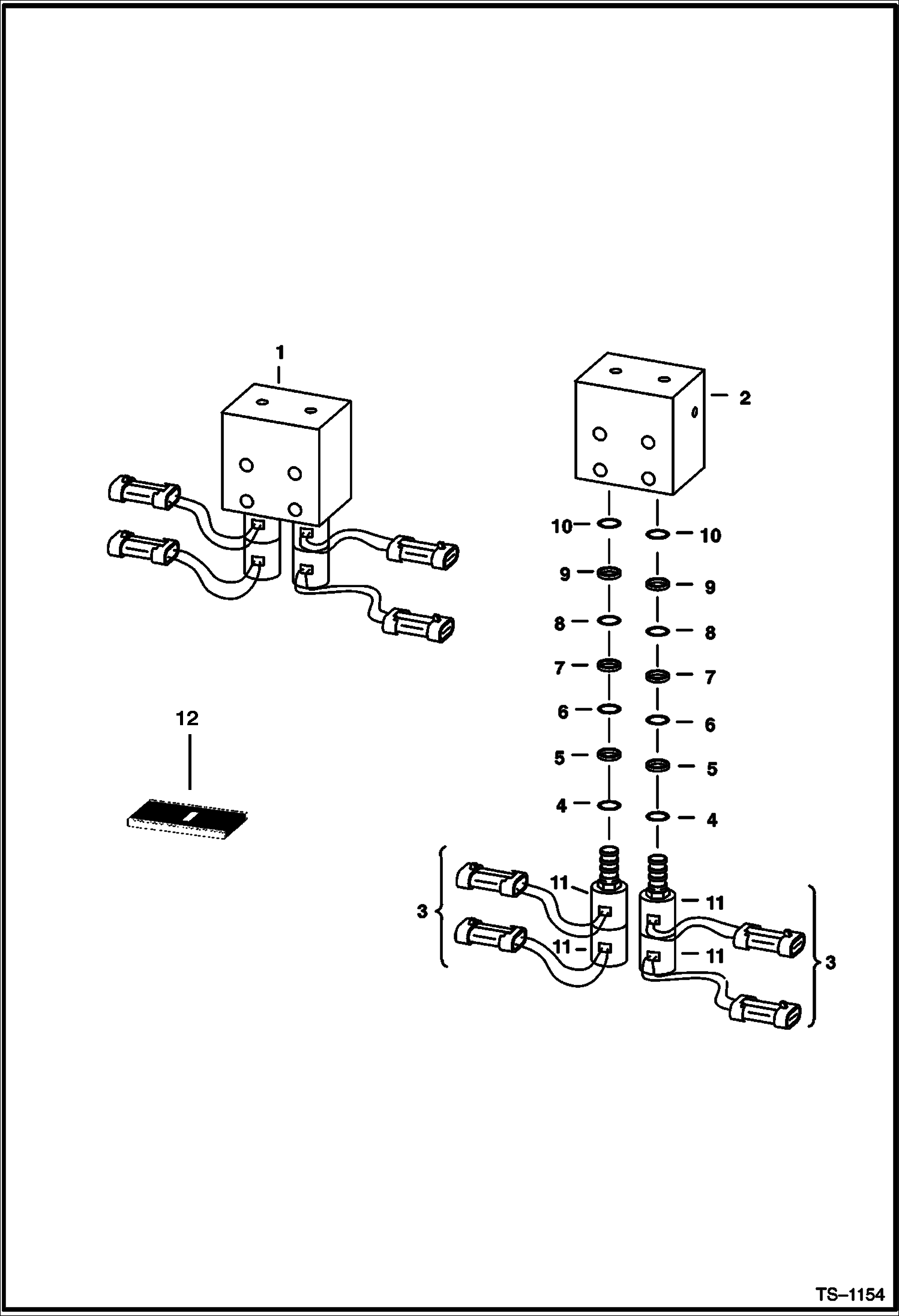

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Valve) (WS12 561500101 & Above) (WS18 561600101 & Above) Loader

1

6664333

VALVE

2

6664334

BLOCK

3

6664341

SOLENOID ASSY W/Ref. 11

3

6676246

NUT

4

O-RING NSS - order Ref. 12 - Was 6664361 - A

5

BACKUP RING NSS - order Ref. 12 - Was 6664365 - A

6

O-RING NSS - order Ref. 12 - Was 6664362 - A

7

BACKUP RING NSS - order Ref. 12 - Was 6664366 - A

8

O-RING NSS - order Ref. 12 - Was 6664363 - A

9

BACKUP RING NSS - order Ref. 12 - Was 6664367 - A

10

O-RING NSS - order Ref. 12 - Was 6664364 - A

11

6667156

COIL

12

6688654

SEAL KIT W/Ref 4-10
