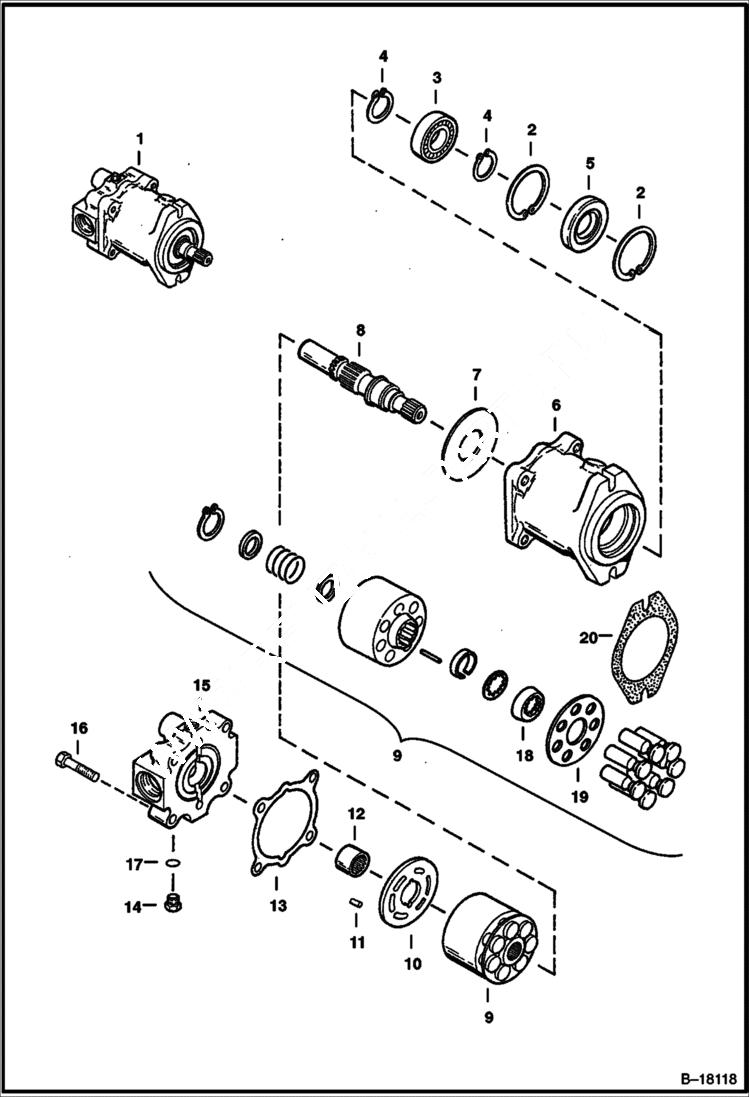

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Hydrostatic Motor) (WS12 561500101 & Above) (WS18 561600101 & Above) Loader

1

6655435

MOTOR W/Ref. 2 - 16 - Was 6664246 - A

1

6665396REM

MOTOR, HYD, W/O GEAR PUMP Remanufactured - Was 6665396 - A

2

669863

RING, SNAP

3

654299

BEARING

4

658128

RING, SNAP

5

6687191

SEAL, OIL Was 6645090 - A

6

6649387

HOUSING Was 6664308 - A

7

6649386

THRUST PLATE

8

6655454

SHAFT Was 6664306 - A

9

6670274

BLOCK Was 6634311 - A

10

6631019

PLATE

11

6634533

PIN

12

6631022

BEARING

13

6631020

GASKET Was 6630120 - D

14

24K6

FITTING Was 6650157 - D

15

6631018

CAP Was 6664307 - A

16

17C836

BOLT

17

79K8

O RING 10

18

6660079

GUIDE

19

6660080

RETAINER

20

6664245

GASKET
