WHEEL SAW (Side Shift Cylinder) (WS18 561600101 & Above)

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Side Shift Cylinder) (WS18 561600101 & Above) Loader

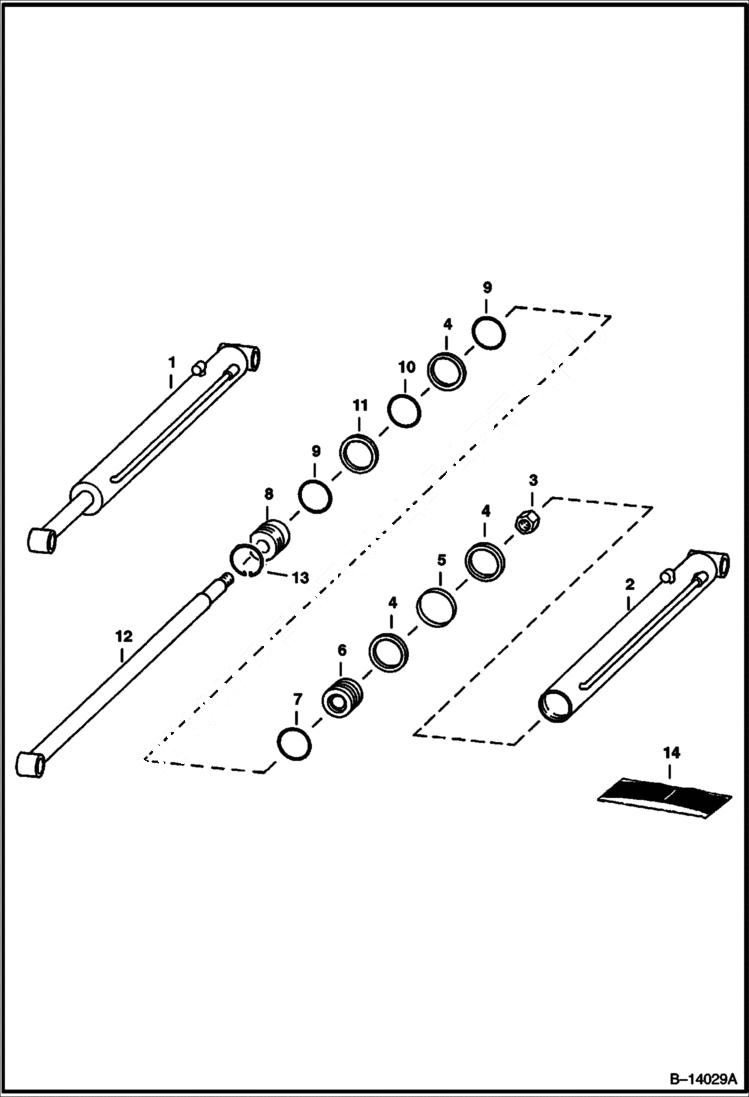

Схема запчастей Bobcat WHEEL SAWS - WHEEL SAW (Side Shift Cylinder) (WS18 561600101 & Above) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6664843

CYLINDER W/Ref. 2 - 12 - Was 6664253 - D

2

6664327

CASE

3

6673617

NUT Was 6664323 - A

4

BACKUP RING NSS

5

DUST SEAL NSS

6

6664325

PISTON

7

O-RING NSS

8

6664324

HEAD

9

O-RING NSS

10

O-RING NSS

11

BACKUP RING NSS

12

6664326

ROD

13

6653758

SNAP RING

14

6664328

SEAL KIT W/Ref. 4, 5, 7 & 9 - 11
