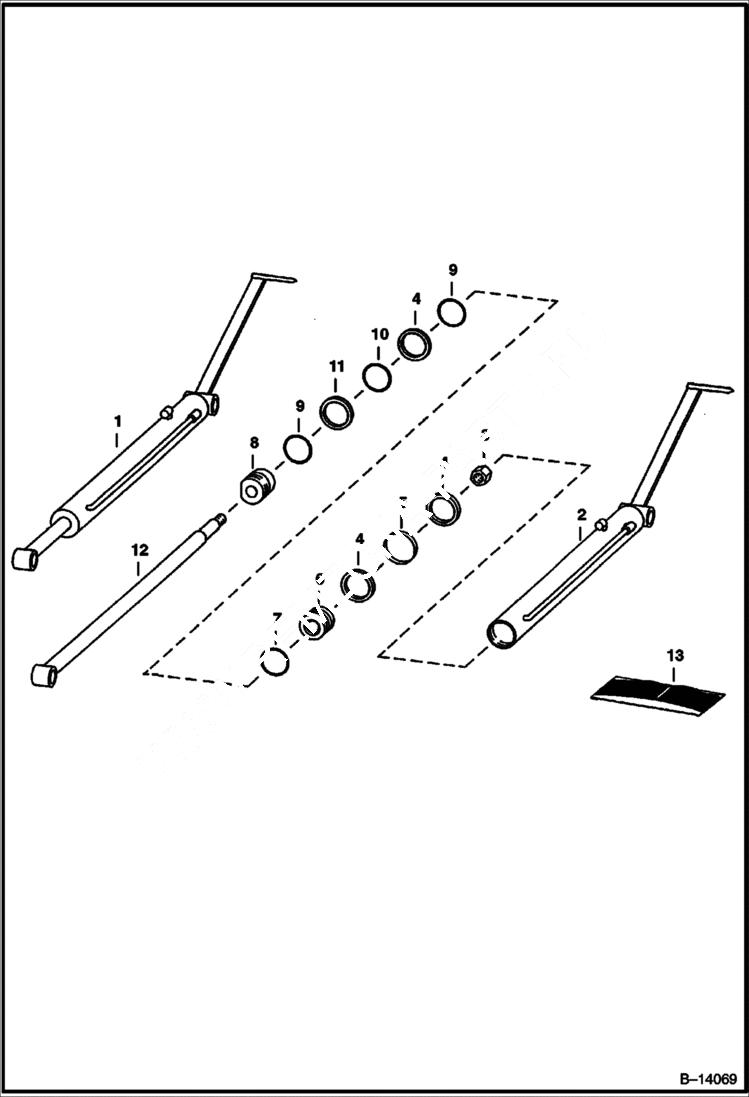

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Depth Control Cylinder) (WS12 561500101 & Above) Loader

1

6664842

CYLINDER W/Ref. 2 - 12

2

6664330

CASE

3

6673617

NUT Was 6664323 - A

4

BACKUP RING NSS

5

DUST SEAL NSS

6

6664325

PISTON

7

O-RING NSS

8

6664324

HEAD

9

O-RING NSS

10

O-RING NSS

11

BACKUP RING NSS

12

6664329

ROD

13

6664328

SEAL KIT W/Ref. 4, 5, 7 & 9 - 11
