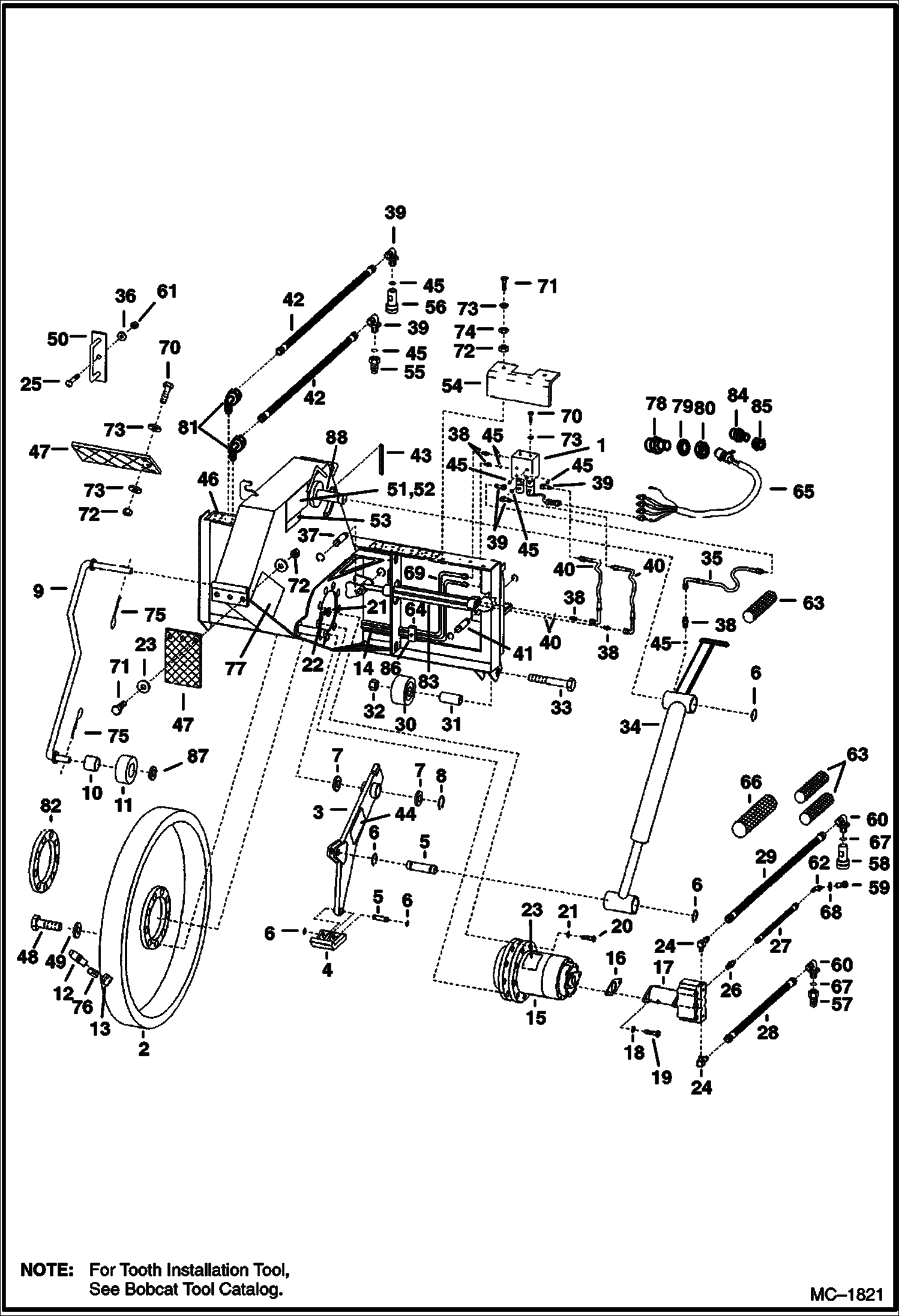

Запчасти Bobcat WHEEL SAWS WHEEL SAW (Main Frame) (WS12 561500101 & Above) (WS18 561600101 & Above) Loader

1

VALVE See Illustration WHEEL SAW/ TS1154

2

6662998

WHEEL ASSY SW2.5-12 - w/28 all purpose bits

2

6662999

WHEEL ASSY SW4.5-12 - w/33 all purpose bits

2

6663900

WHEEL ASSY SW2.5-18 - w/42 all purpose bits

2

6663901

WHEEL ASSY SW4.5-18 - w/44 all purpose bits

3

6664231

ARM WS12

3

6664232

ARM WS18

4

6665575

PAD Was 6664233 - A

5

6664234

PIN

6

6664235

RETAINING RING

7

6664236

SPACER

8

6664237

SNAP RING

9

6664238

GUIDE ARM

10

6664239

BUSHING

11

6664240

GUIDE WHEEL

12

6672259

BIT std all purpose - sharp point

12

6650137

BIT, TOOTH BLUNT POINT 70 all purpose - blunt point for longer life

12

6650138

BIT, TOOTH CARBIDE 70 concrete

12

6659946

BIT, TOOTH CARBIDE heavy duty

13

6634443

HOLDER, BIT Was 6664241 - A

14

6664300

TUBE

15

GEARBOX

15

6664243

SEAL

15

6664244

SEAL

16

6664245

GASKET

17

MOTOR See Illustration WHEEL SAW/ B18118

18

27E8

WASHER 10

19

17C824

BOLT 5

20

18C948

BOLT

21

27E9

WASHER

22

6675725

NUT Was 62D000009B - B

23

6705607

DECAL planetary oil

24

6664248

FITTING

25

7C656

BOLT

26

6664249

FITTING

27

6664335

HOSE casedrain

28

6664336

HOSE pressure

29

6664337

HOSE return

30

6664250

WHEEL

31

6664251

BUSHING 3.50''

31

6677910

BUSHIING 3.75''

32

85D16

LOCKNUT Was 59D000016B - B

33

17C1696

BOLT Was 17C002096B - B

34

CYLINDER See Illustration WHEEL SAW/ B14069 WS12

34

CYLINDER See Illustration WHEEL SAW/ B14069A WS18

35

6664338

HOSE

36

25E18

WASHER

37

6664255

PIN

38

15K5

FITTING W/Ref. 45

39

17K5

ELBOW W/Ref. 45

40

6664339

HOSE

41

6664256

PIN

42

6664340

HOSE

43

6705631

DECAL depth indicator - WS12

43

6705624

DECAL depth indicator - WS18

44

DECAL NLA - pinch point - Was 6705609 - A

45

79K5

O RING 10

46

6705610

TRACTION STRIP

47

6664257

SHIELD

48

17C1028

BOLT for 12'' or 18'' W/O spacer disc - Was 17C001040B - B

48

47C1032

BOLT for 18'' W/spacer disc, Ref. 82

49

27E10

WASHER

50

6706160

GUIDE

51

6703645

DECAL Bobcat - R.H. - WS18

51

6567988

DECAL, LOGO BOBCAT AND HEAD RH - WS12

52

6703646

DECAL Bobcat - L.H. - WS18

52

6567987

DECAL, LOGO BOBCAT AND HEAD LH - WS12

53

DECAL NLA - WS12 - Was 6705611 - A

53

DECAL NLA - WS18 - Was 6705612 - A

54

6664301

COVER

55

6648969

QUICK COUPLER male - poppet

55

6667804

COUPLER, FF MALE

55

6669657

SEAL KIT

56

6648967

QUICK COUPLER female - poppet

56

6667803

COUPLER, FF FEMALE

57

6648970

QUICK COUPLER male - poppet

57

6674688

COUPLER, FF MALE straight - Was 6667808 - A

57

6679841

SEAL Was 6672026 - A

58

6648968

QUICK COUPLER female - poppet

58

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

59

6658252

QUICK COUPLER female - poppet

59

6667805

COUPLER, FF FEMALE straight

60

17K8

FITTING W/Ref. 67 - Was 731016 - B

61

85D6

NUT, 5

62

18K5

ELBOW Use with poppet couplers - Was 743108B - B

62

6711631

ELBOW Use with flush face couplers

63

6649389

HOSE COVER 1.75'' (44,45mm) dia.

64

6664254

CLAMP

65

HARNESS NLA - Order 6665576 - Was 6664259 - A

65

6665576

HARNESS

66

6652367

HOSE COVER 3.00'' (76,2mm) dia.

67

79K12

O RING 10

68

79K6

O RING 10 Use with poppet coupler

68

79K8

O RING 10 Use with flush face coupler

69

6664299

TUBE return

70

17C624

BOLT 5

71

17C616

BOLT 5

72

61D6

NUT 5

73

25E18

WASHER

74

4E6

WASHER

75

1F424

PIN

76

6664475

RETAINER

77

6705608

DECAL Danger

78

6664038

DUST CAP

79

6664037

WASHER

80

6664036

NUT

81

11K5

FITTING

82

6666925

SPACER DISC For 18''

83

CYLINDER See Illustration WHEEL SAW/ B18117 WS12

83

CYLINDER See Illustration WHEEL SAW/ B14029A WS18

84

6665001

CONNECTOR, ELECTRICAL W/Ref. 85

85

6669286

CLAMP With saddles

86

6672864

CLAMP plate

87

25E31

WASHER

88

6686652

PIN
