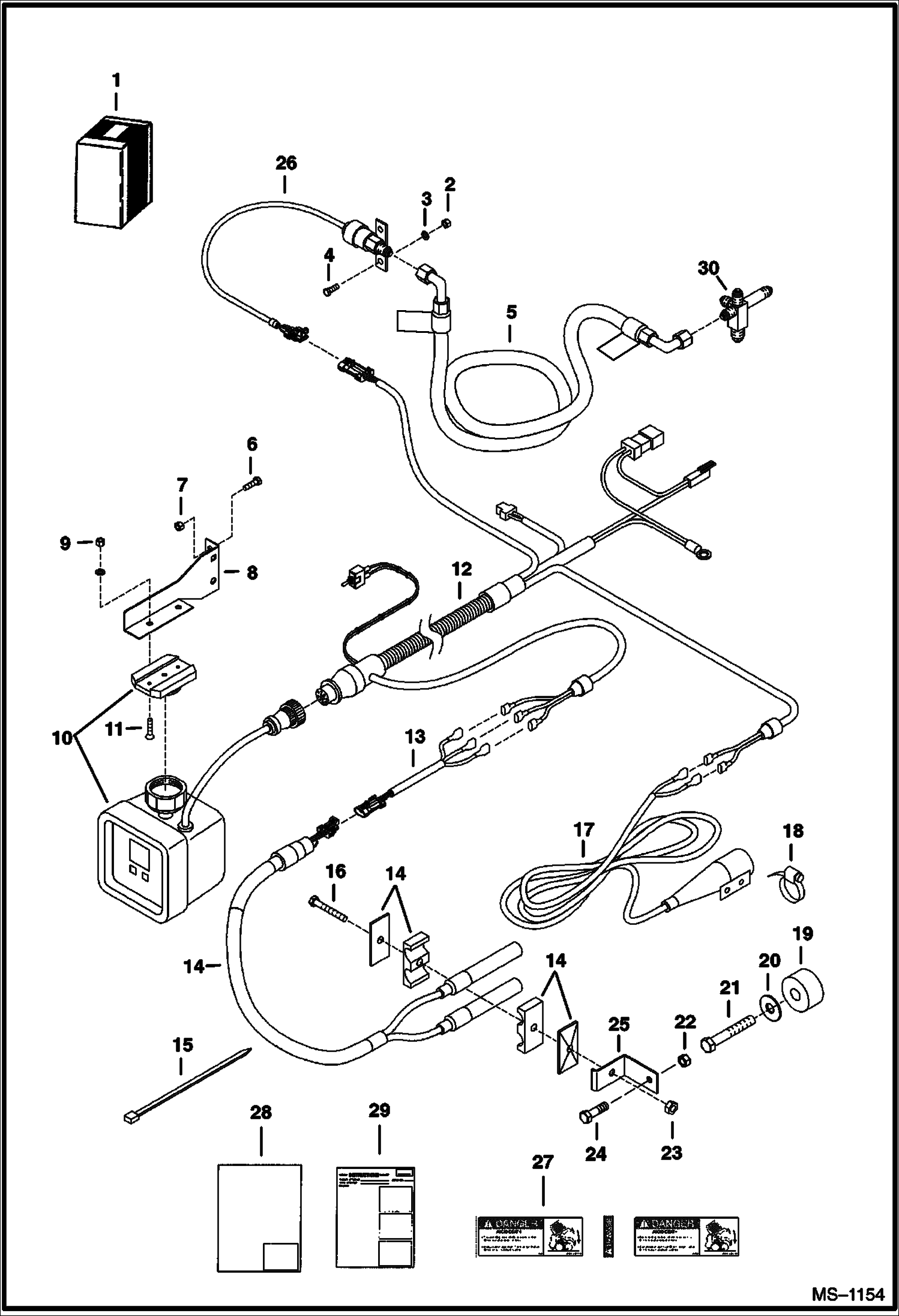

Запчасти Bobcat WEIGHLOG WEIGHLOG G Series and Newer Loader Loader

1

6731772

KIT Weighlog - W/Ref. 2 - 29 - Note: Ref. 30 tees are not included in kit - order separately

2

53DM6

NUT Was 40DM00006B - B

3

2EM6

WASHER

4

1CM625

BOLT

5

6679013

HOSE available only as an assembly W/two danger decals installed

5

6809511

DECAL, DANGER

6

17C516

BOLT

7

59D5

NUT 5

8

6679009

BRACKET

9

6673927

NUT

10

6673921

HEAD UNIT

11

6673925

BOLT

12

6673922

HARNESS

13

6673671

HARNESS direction sensor

14

6679010

SENSOR direction

15

6610510

TIE

16

1CM855

BOLT

17

6673676

BUTTON load enter

18

42H12

CLAMP 10

19

6673658

MAGNET

20

6673931

WASHER fiber

21

17C424

BOLT

22

59D4

NUT 5

23

53DM8

NUT Was 40DM00008B - B

24

17C416

BOLT

25

6679011

BRACKET

26

6679012

LOAD SENSOR

27

6809511

DECAL, DANGER

28

6679008

MANUAL operation and calibration

29

6901208

INSTRUCTIONS installation

30

6678978

TEE 963 - swivel hose

30

7100470

TEE 963

30

6678981

TEE 863, 873, 883, 864, T200 - swivel hose

30

6678979

TEE 863, 873, 883, 864, T200 - anti-swivel hose

30

6678983

TEE 753, 763, 773, earlier machines, see instructions for S/N breaks - swivel hose

30

TEE NLA - 773 - Was 6678982 - A

30

6678980

TEE S175, S185, S150, S160, see instructions for S/Ns - T180, T190, all S/Ns - anti-swivel hose

30

6681579

TEE 800C

30

7108369

FITTING T250, S250, A220, S220, A300, S300, T300, all S/Ns - anti-swivel hose

30

7100469

TEE 753, 763, 773, later machines, see instructions for S/N breaks - S130, T140, all S/Ns - anti-swivel hose
